Intelligent lithium battery management system with 200A rated
charge and discharge capability, CAN and RS485 communication,
inverter protocol matching, pre-charge control, parallel communication
and comprehensive battery protection.
16S Battery Configuration | 200A Rated Current | 48V Typical System Voltage |
CAN Inverter Communication | RS485 Parallel and PC Monitoring | Pre-Charge Capacitive Load Protection |

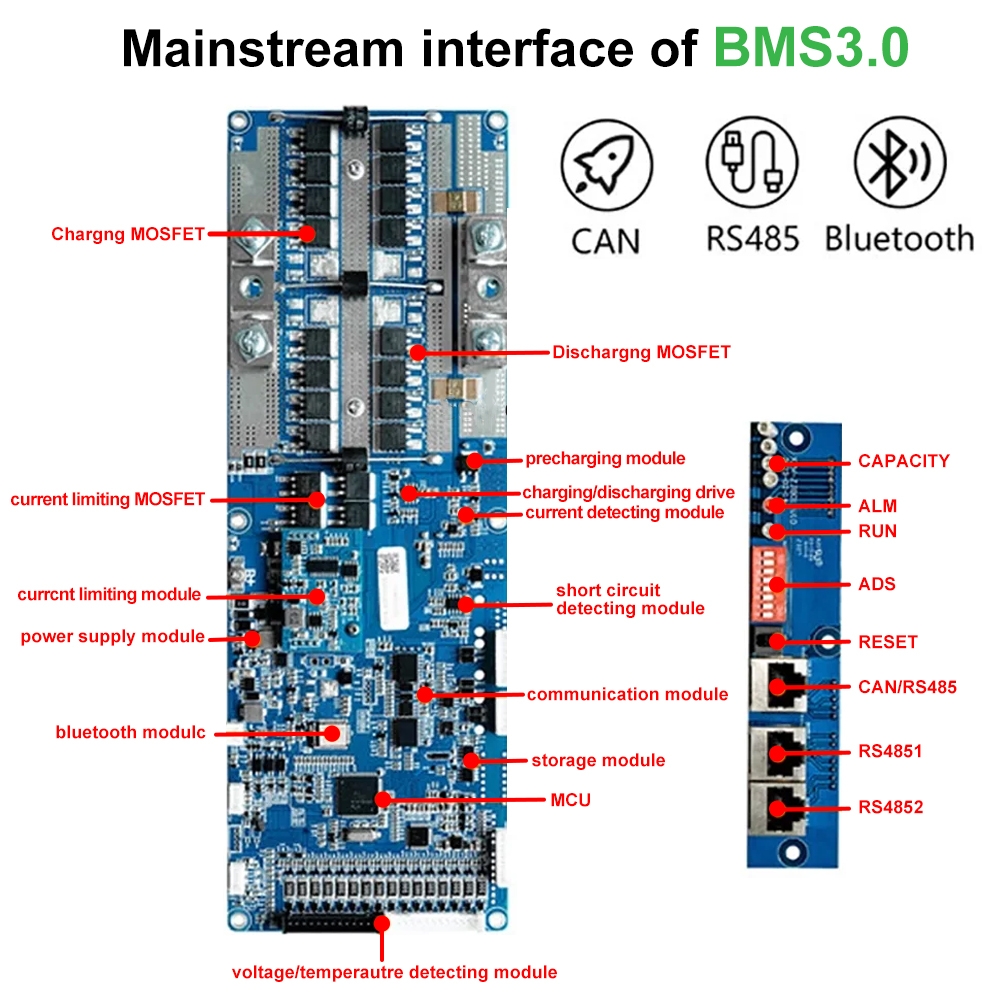

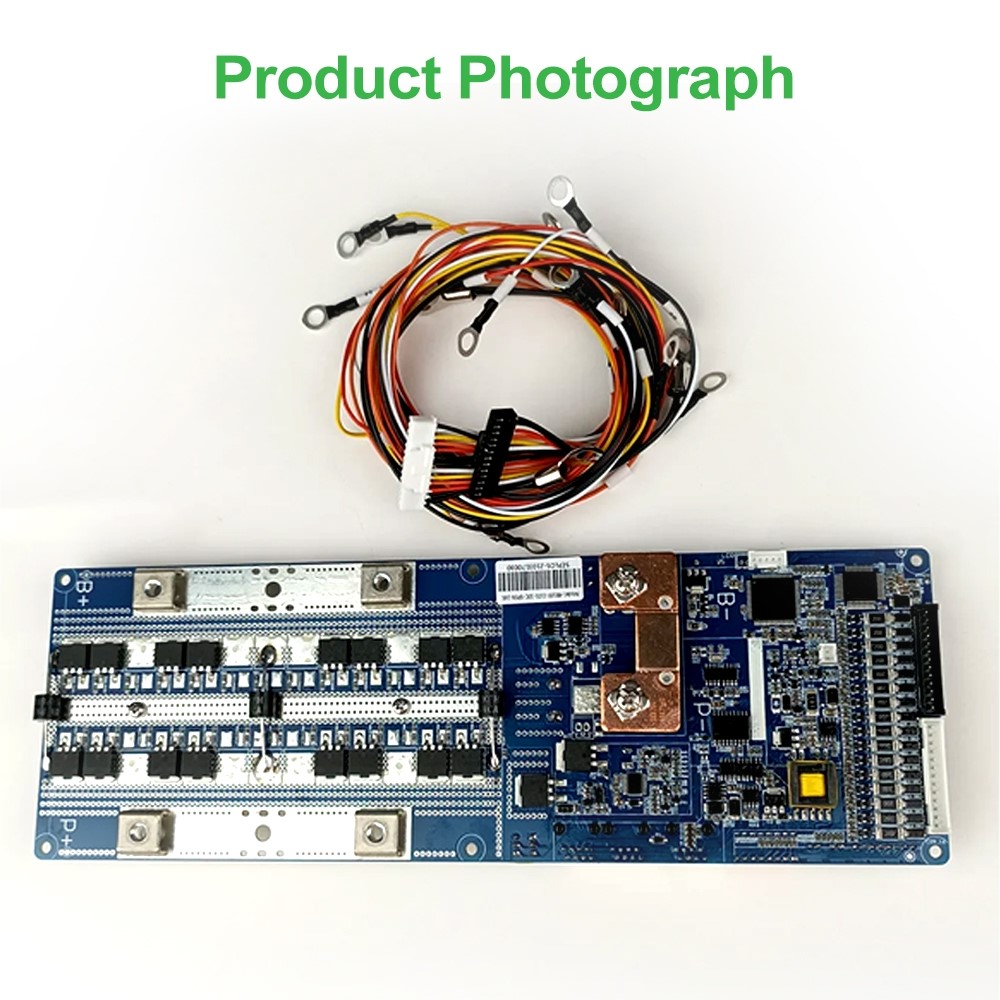

The SEPLOS 16S200A Smart BMS is designed for 48V lithium battery
energy storage systems. It supports the collection and management
of up to sixteen battery cells and provides a rated charge and
discharge current of 200A.
The BMS monitors individual cell voltage, total battery voltage,
charging and discharging current, battery temperature, ambient
temperature and MOS temperature. It calculates SOC, SOH and
accumulated discharge capacity according to battery operating data.
CAN and RS485 communication support inverter integration,
multi-pack communication and PC monitoring. Configurable protection
parameters, pre-charge control, historical data storage and optional
accessories provide flexible integration for residential and
commercial energy storage projects.
Provides 200A rated charging and discharging capability, with
adjustable overcurrent alarms, protection thresholds and delay
settings for high-capacity 48V battery systems.
Supports CAN and RS485 communication protocols for compatible
energy storage inverters. The required protocol can be selected
through the PC monitoring software or an optional LCD display.
The BMS supports automatic address assignment during multi-pack
communication, reducing manual address configuration when compatible
battery packs are connected through the internal RS485 network.
The integrated pre-charge function helps prevent short-circuit
protection from being triggered when the battery is connected
to an inverter or other capacitive load.
Includes individual and total voltage protection, charge and
discharge overcurrent protection, secondary overcurrent protection,
temperature protection, short-circuit protection and configurable
recovery functions.
Monitors four battery temperature points, one internal ambient
temperature point and one power MOS temperature point for more
comprehensive thermal protection.
Records battery voltage, current, temperature and operating-state
changes with time information. The storage capacity is not less than
500 historical records and data can be accessed through the monitoring interface.
Supports standby and charging balancing with a balancing current
of at least 50mA. The starting voltage, starting voltage difference,
ending voltage difference and balancing duration can be configured.

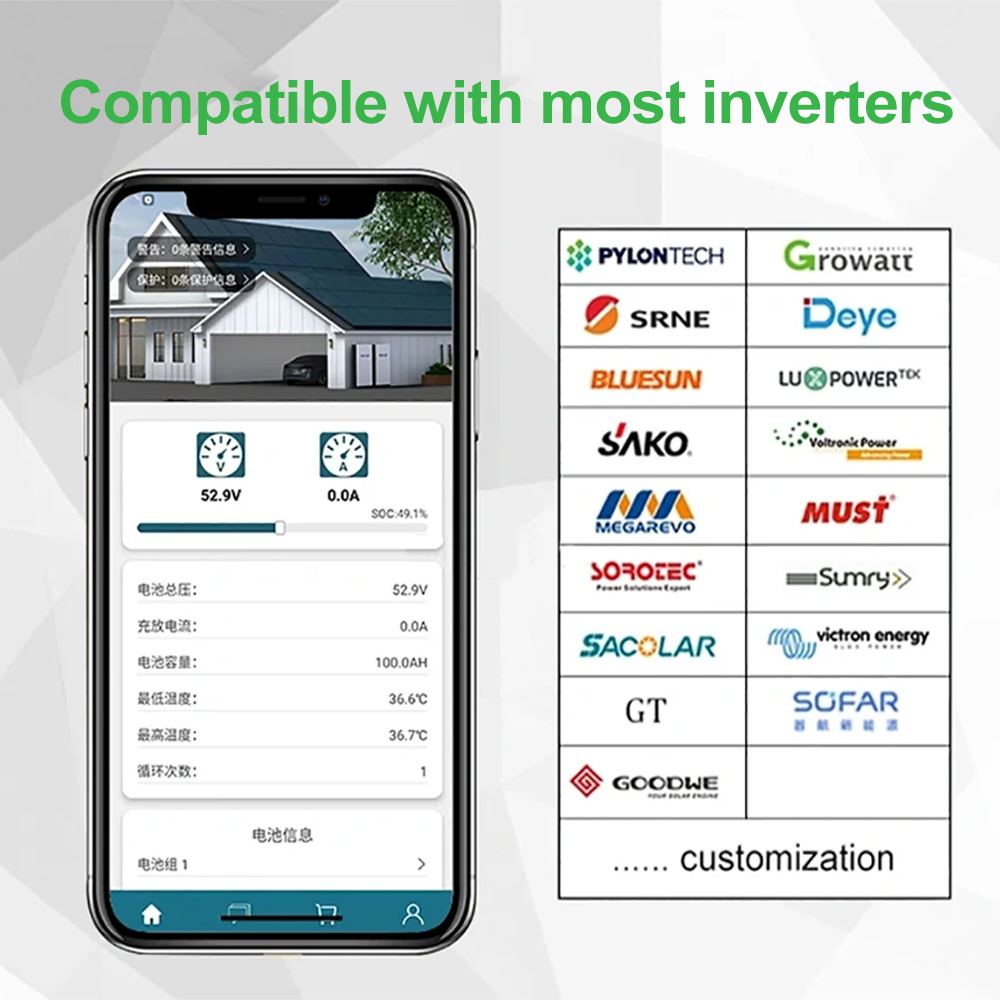

The specification includes communication protocol options for the
following inverter platforms. Compatibility should be confirmed
according to the exact inverter model and firmware before ordering.
| Communication | Supported Protocol Options |
|---|---|
| CAN | Pylon, Growatt, Goodwe, Sofar, SMA, Victron, Studer and Ginlong |
| RS485 | Voltronic, SRNE, Growatt, Pylon and Deye |
| ✓ Individual Cell Overvoltage Protection | ✓ Individual Cell Undervoltage Protection |
| ✓ Total Voltage Overvoltage Protection | ✓ Total Voltage Undervoltage Protection |
| ✓ Charge Overcurrent Protection | ✓ Discharge Overcurrent Protection |
| ✓ Secondary Overcurrent Protection | ✓ Short-Circuit Protection |
| ✓ Charge High/Low Temperature Protection | ✓ Discharge High/Low Temperature Protection |
| ✓ Ambient Temperature Protection | ✓ MOS Temperature Protection |
| ✓ SOC Low Alarm and Protection Settings | ✓ Cell Voltage Difference Alarm |
| Parameter | Specification |
|---|---|
| Basic Information | |
| Brand | SEPLOS |
| Model | SEPLOS 16S200A |
| Product Type | Lithium Battery Management System |
| Typical Battery System | 48V / 16S LiFePO4 Battery System |
| Supported Cell Collection | 8S–16S with corresponding hardware and parameter configuration |
| Electrical Characteristics | |
| Working Voltage | 40V–59V, typical 48V |
| Charging Voltage | 48V–60V, typical 54V |
| Rated Charge and Discharge Current | 200A |
| Maximum Listed Current | 210A |
| Internal Resistance | <2mΩ |
| Current Sampling Accuracy | ±2% at normal temperature |
| Cell Voltage Detection Accuracy | ±10mV at 0°C–45°C ±30mV at -20°C–70°C |
| Communication and Monitoring | |
| Inverter Communication | CAN / RS485 |
| Internal Communication | RS485A / RS485B, 19200 baud |
| Parallel Addressing | Automatic Address Assignment |
| Historical Data Storage | Not Less Than 500 Records |
| Calculated Battery Data | SOC, SOH and Total Discharge Capacity |
| Balancing and Temperature | |
| Balancing Method | Energy-Consumption Balancing |
| Balancing Current | ≥50mA |
| Default Balancing Start Voltage | 3.40V |
| Balancing Start Voltage Difference | 0.05V |
| Balancing End Voltage Difference | 0.03V |
| Temperature Monitoring | 4 Cell + 1 Ambient + 1 MOS Sensor |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Ambient Humidity | 10%–85% |
| Physical Information | |
| BMS Dimensions | 350 × 100mm |
| Standby Consumption | ≤40mA |
| Standby with Current-Limit Module | ≤60mA |
| Shutdown / Hibernate Consumption | ≤0μA |

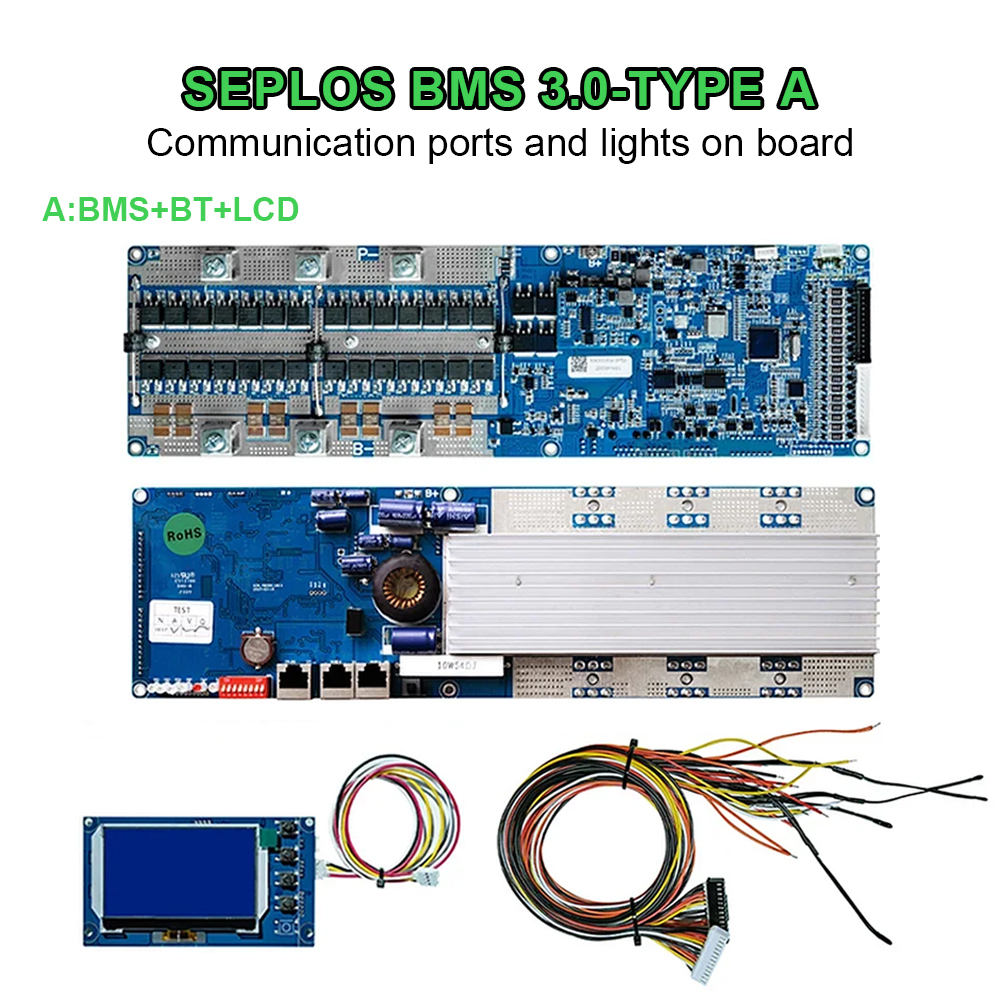

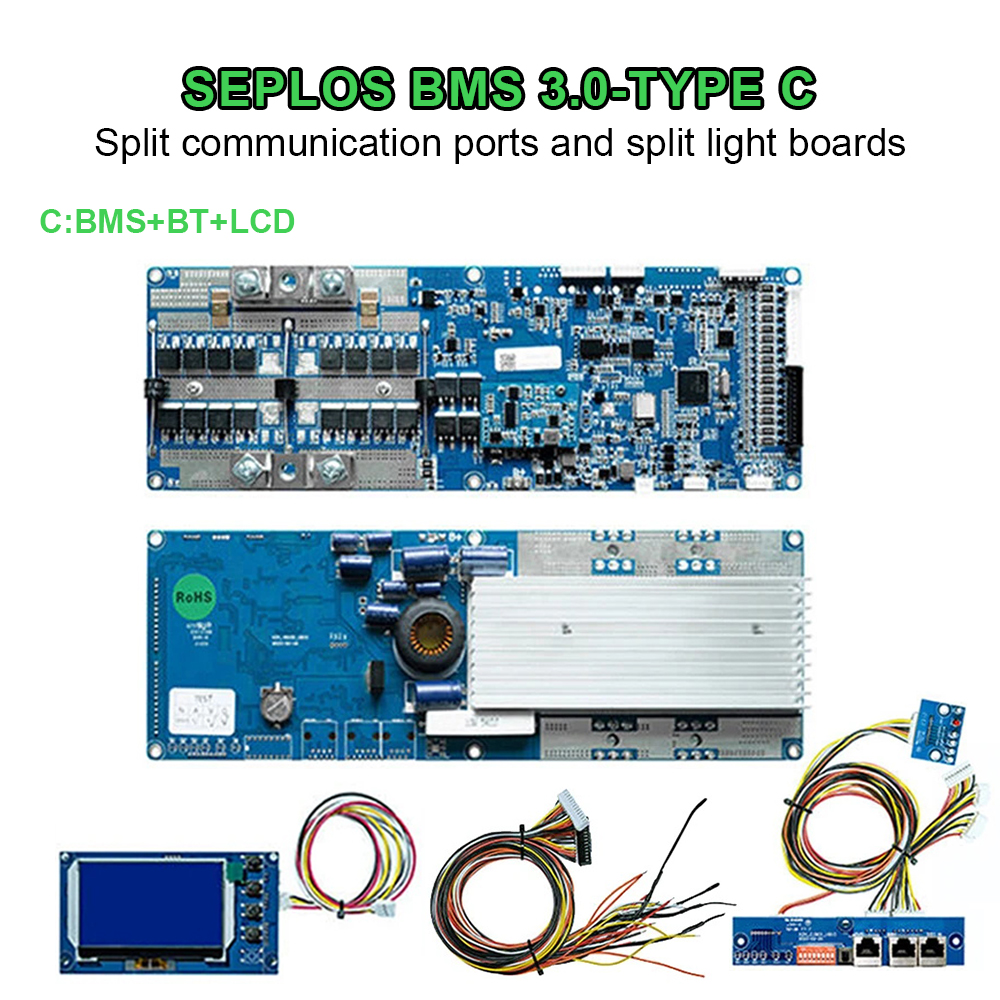

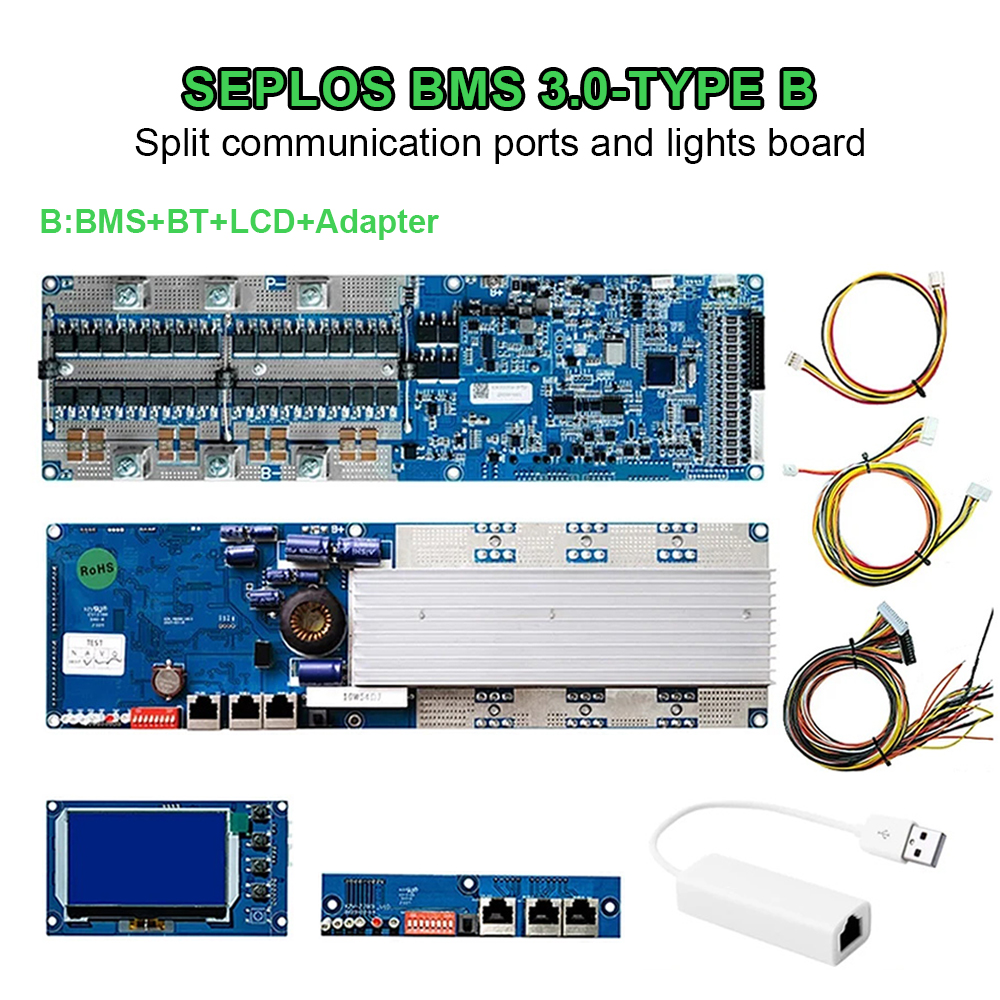

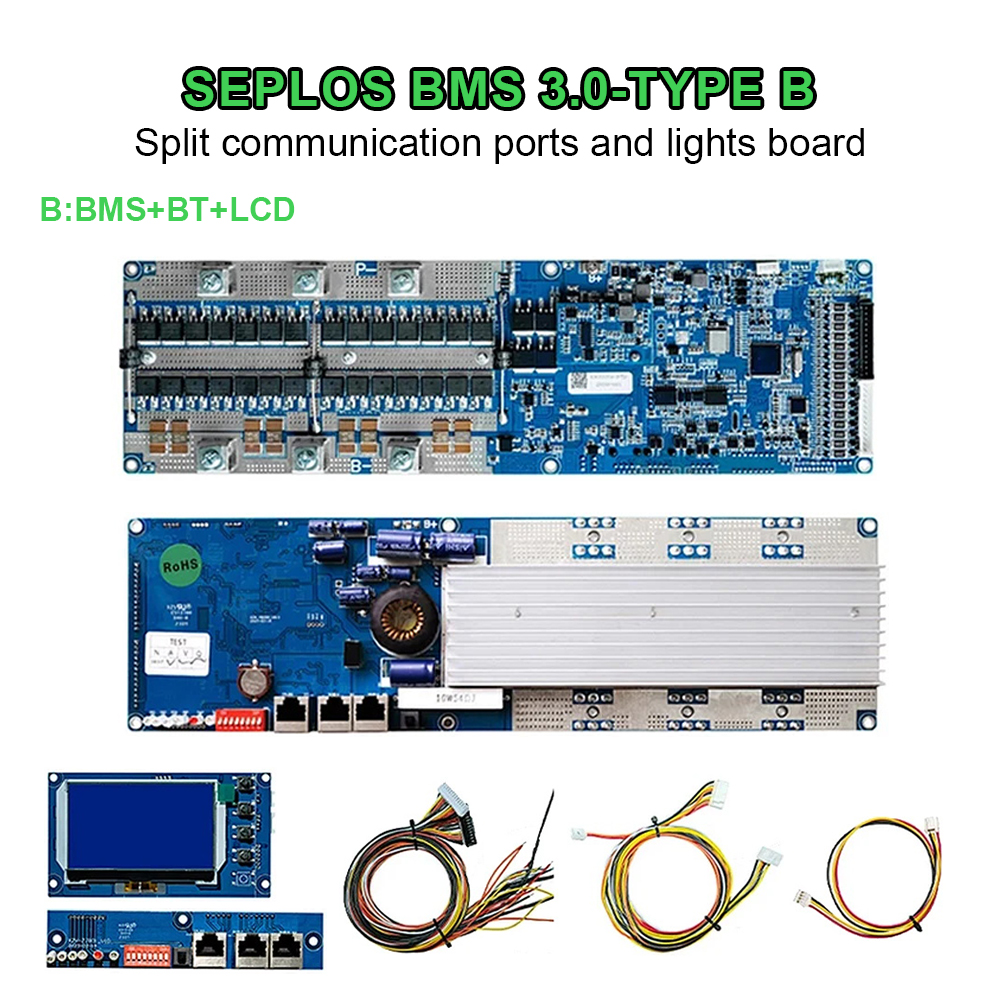

The following functions are not necessarily included in the standard
configuration. Confirm the required hardware and accessories before ordering.
| ✓ LCD Screen for Battery Data and Protocol Selection |
| ✓ Bluetooth Module and APP Monitoring |
| ✓ Two-Way Dry Contact for Alarm and Protection Status |
| ✓ External Self-Locking Power Switch |
| ✓ Aerosol Detection Interface |
| ✓ Fault Release Control Hardware |

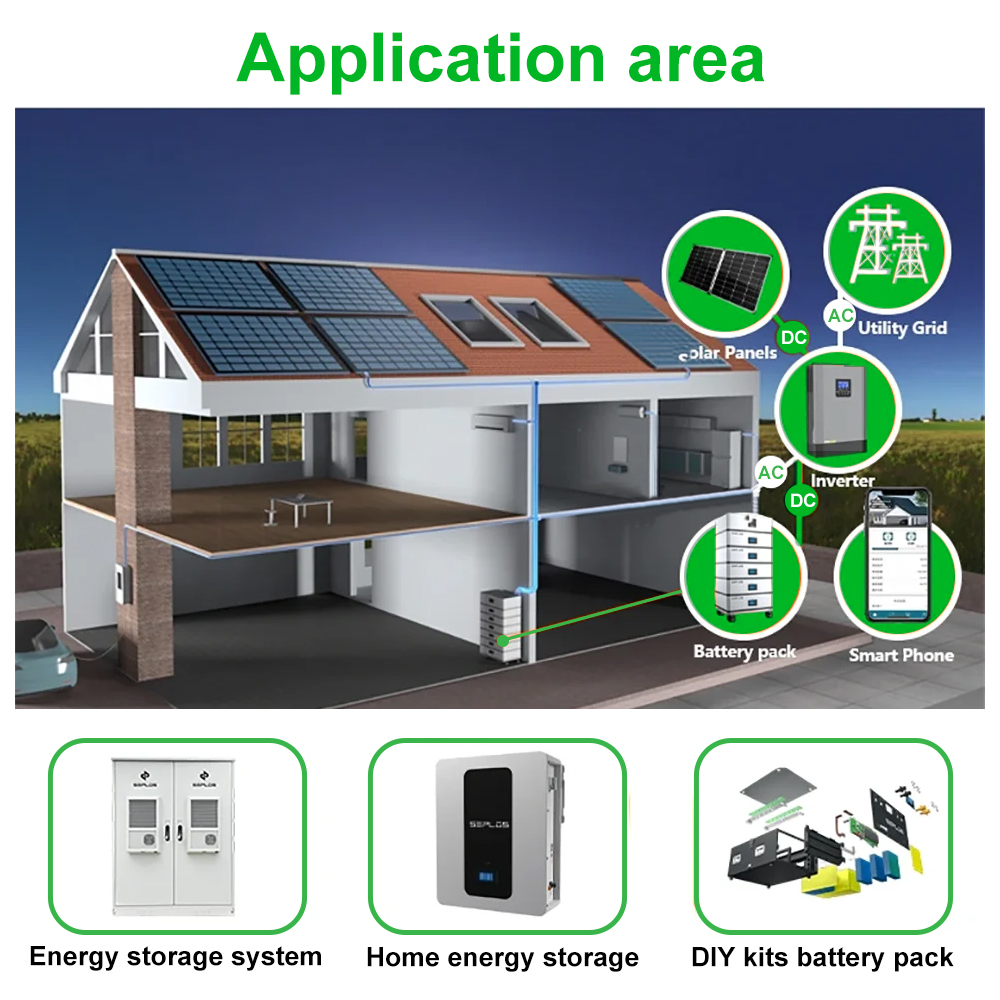

| ✓ 48V Residential Solar Energy Storage Batteries |
| ✓ Commercial Energy Storage Battery Cabinets |
| ✓ Off-Grid and Grid-Tied Battery Systems |
| ✓ Telecom and Communication Backup Power |
| ✓ UPS and Emergency Power Systems |
| ✓ Professional 16S LiFePO4 Battery Pack Projects |
The sampling harness must be connected in the correct order.
Reversing or misaligning the black and white sampling connectors
may damage the sampling resistors and BMS.
This BMS cannot be connected in series with another BMS.
The power components have a withstand voltage of 100V and the
values listed in the specification must not be exceeded.
The charging input must not be connected with reverse polarity.
The system does not include reverse-charging protection.
Installation must be completed by personnel familiar with lithium
battery systems and high-current electrical connections.
Yes. The SEPLOS 16S200A is commonly used with 16-cell 48V
LiFePO4 energy storage battery systems.
The specification lists a rated charge and discharge current of
200A and a maximum listed current of 210A. System cables,
terminals and protection devices must be selected accordingly.
No. The specification describes an energy-consumption balancing
circuit with balancing current of at least 50mA. It is not a
high-current active balancing system.
Yes. The BMS supports CAN and RS485 communication and includes
multiple selectable inverter protocols. Compatibility must be
confirmed using the exact inverter brand and model.
Yes. The BMS supports internal RS485 communication and automatic
address assignment for compatible multi-pack battery systems.

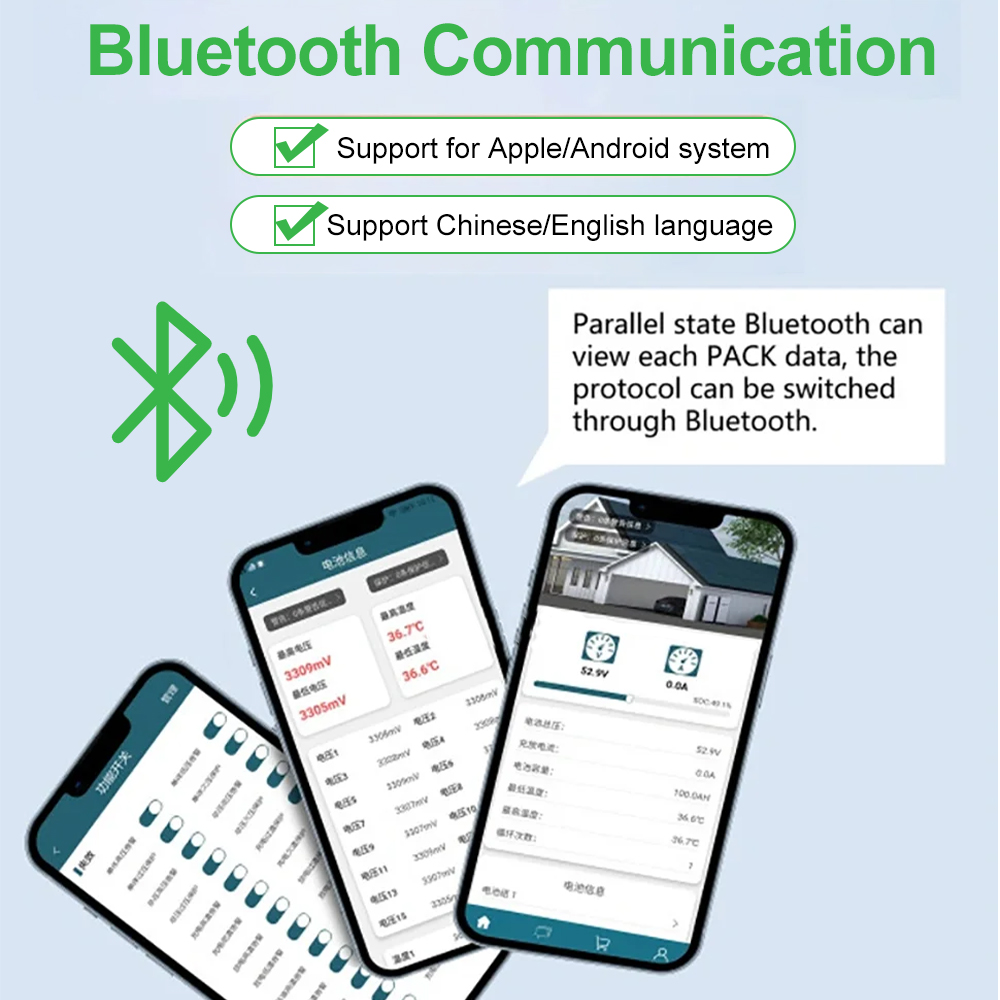

Bluetooth is listed as an optional function requiring corresponding
hardware. Confirm the Bluetooth module and APP configuration before ordering.

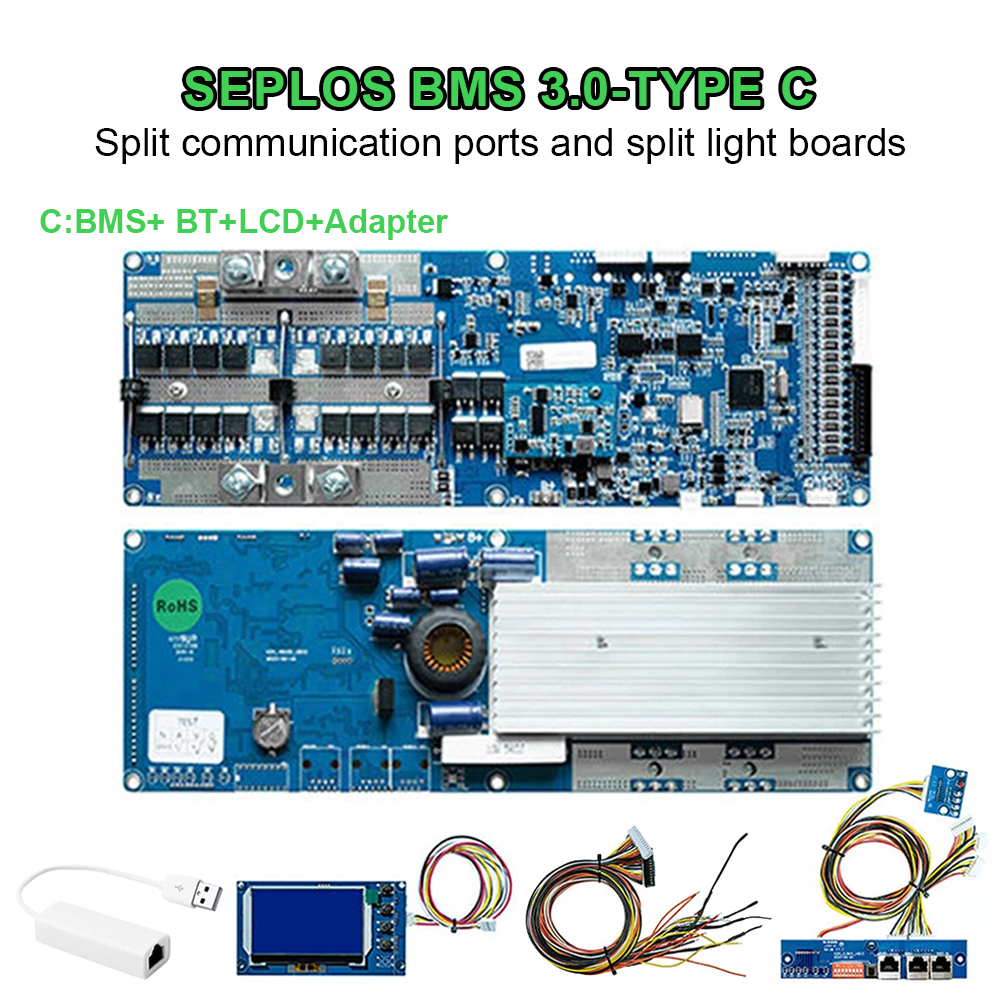

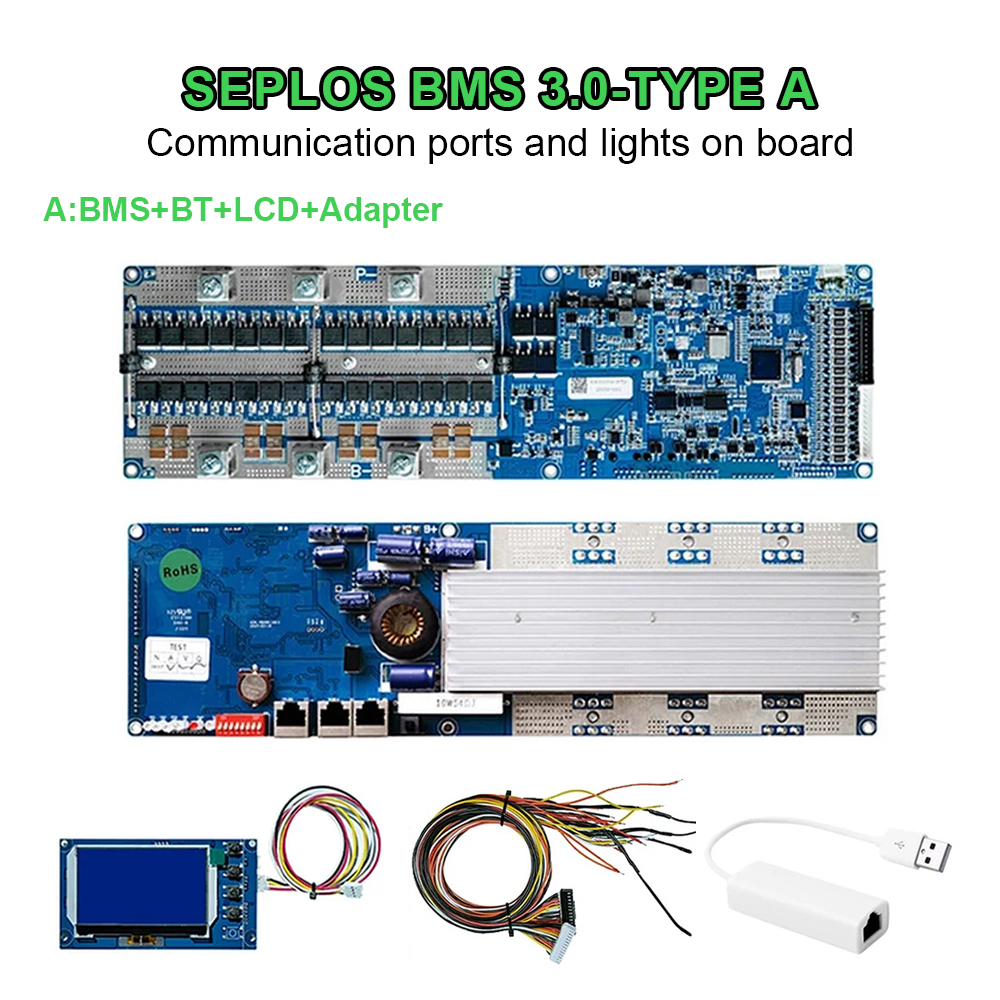

The LCD screen is optional. When installed and enabled, it can display
battery information and switch compatible inverter communication protocols.
Send us your battery chemistry, cell capacity, inverter model,
required communication protocol and optional accessory requirements
to confirm compatibility, configuration and quotation.
