✓ 51.2V nominal system (demo)
✓ 10kWh usable energy (demo)
✓ Wall-mounted, space-saving format
✓ Smart BMS protection options
✓ Scalable design subject to model configuration
Price: Request Bulk Price
Price:
$161.11

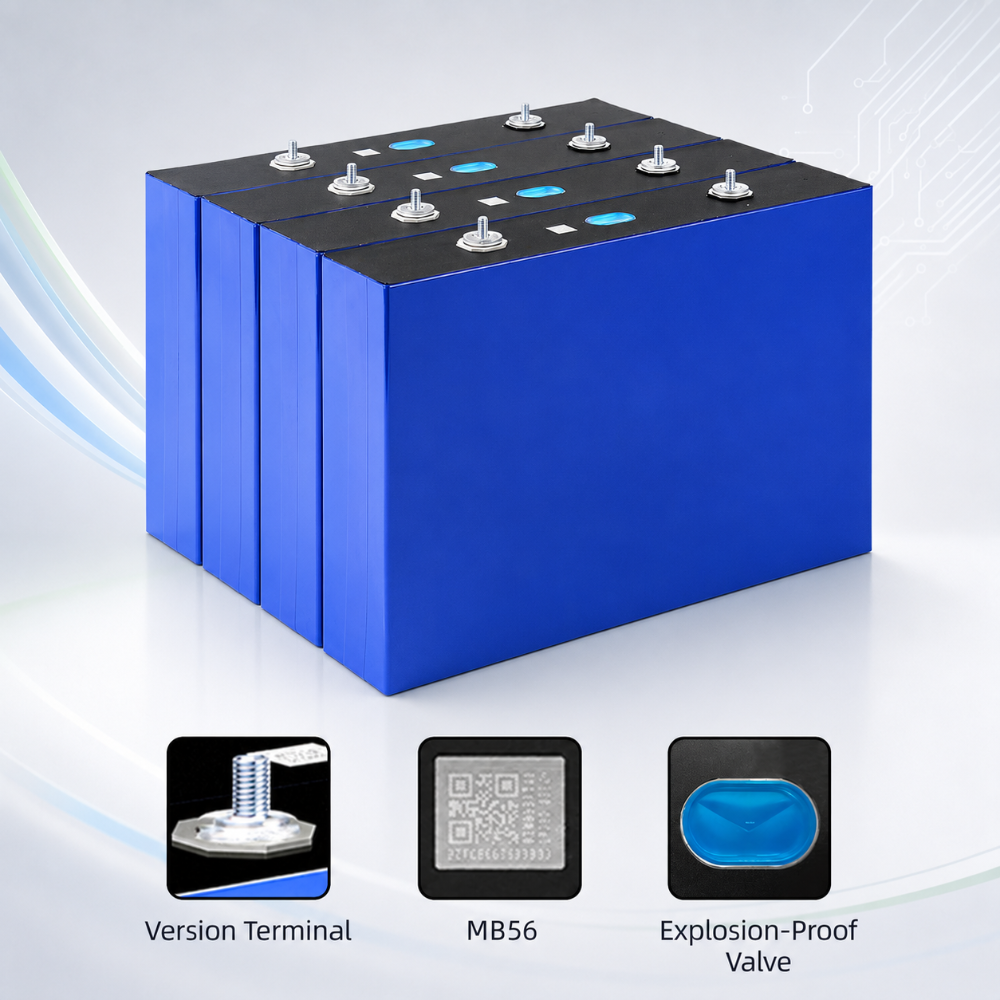

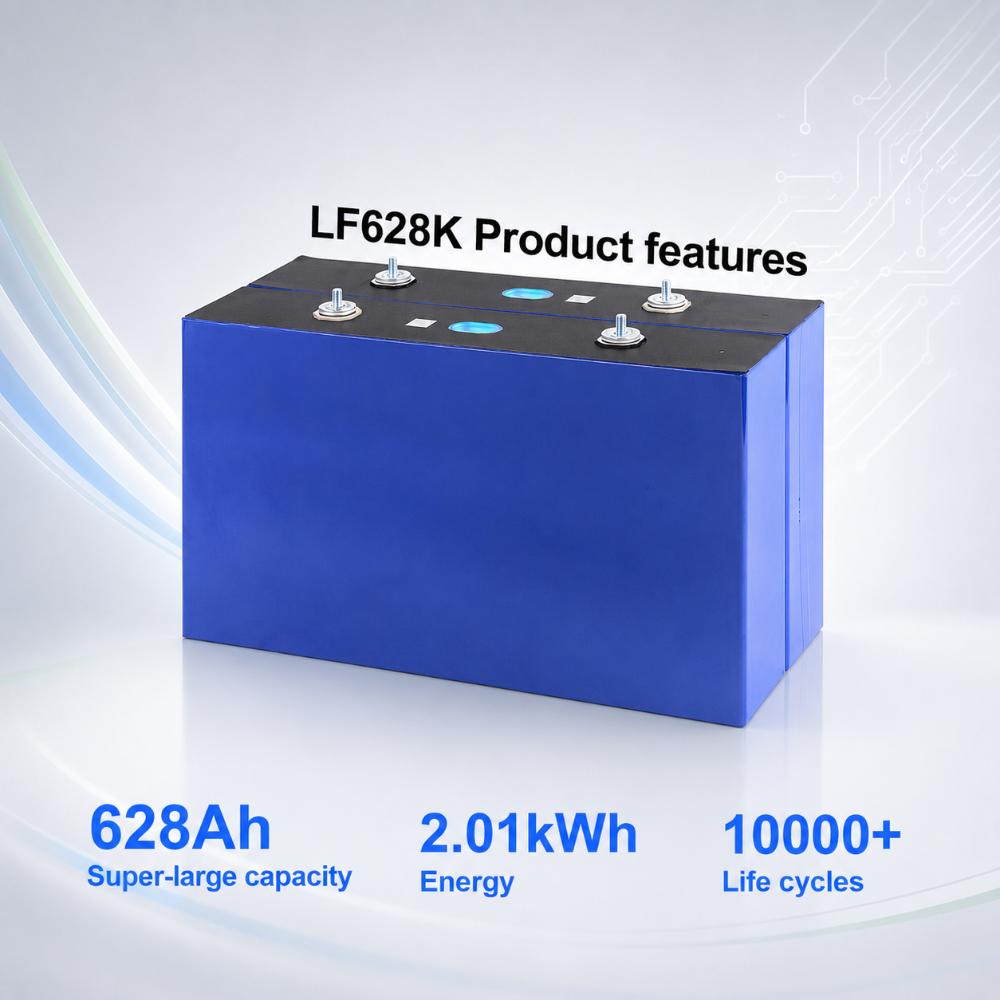

Ultra-high-capacity prismatic lithium iron phosphate cell with
2009.6Wh nominal energy, low internal resistance and up to
10,000-cycle performance for stationary energy storage systems.
EVE MB56 628Ah cells are available from our Poland warehouse.
European customers can benefit from shorter delivery times,
local EU dispatch and convenient door-to-door transportation.
Please contact us to confirm the latest stock quantity and delivery schedule.
628Ah Nominal Capacity | 3.2V Nominal Voltage | 2009.6Wh Nominal Energy |
0.5P Continuous Charge | 0.10mΩ Initial Resistance | 10,000 Cycle Performance |
The EVE MB56 is an ultra-high-capacity prismatic LiFePO4 cell
with a nominal voltage of 3.2V, nominal capacity of 628Ah and
nominal energy of 2009.6Wh.
It supports standard and maximum continuous charging and
discharging power of 0.5P under specified operating conditions.
Its initial AC internal resistance is 0.10 ±0.05mΩ, helping reduce
internal losses and heat generation.
The MB56 is designed for professional integration into residential,
commercial, industrial and utility-scale battery energy storage
systems. A compatible BMS, thermal management system and mechanical
compression structure are required.
Available for local dispatch from Poland, helping EU customers
reduce international transportation time and receive products
through faster door-to-door delivery.
One MB56 cell provides 2009.6Wh of nominal energy, allowing
high-capacity battery systems to be built with fewer individual cells.
Designed for up to 10,000 cycles at 25°C under specified
charge and discharge conditions, ending at 70% SOH.
Initial AC resistance of 0.10 ±0.05mΩ supports efficient
charge and discharge performance with lower internal losses.
Supports continuous charging and discharging power of 0.5P
at 25 ±2°C for stable stationary energy storage operation.
The specification states energy efficiency of at least 94%
under specified 0.5P charge and discharge conditions.
Supports charging from 0°C to 60°C and discharging from
-30°C to 60°C, subject to suitable BMS and thermal management controls.
The product specification includes overcharge, over-discharge,
short-circuit, crush, drop, low-pressure, heating and thermal
runaway testing under defined conditions.
| ✓ Ready Stock Available in Poland |
| ✓ Faster Delivery to EU Countries |
| ✓ Door-to-Door Transportation Available |
| ✓ Shorter Waiting Time Than China-Origin Shipment |
| ✓ Suitable for Samples, Projects and Bulk Orders |
| ✓ Residential Solar Energy Storage Systems |
| ✓ Commercial and Industrial Energy Storage |
| ✓ Grid-Tied and Off-Grid Solar Battery Systems |
| ✓ Telecom and Communication Backup Power |
| ✓ UPS and Emergency Backup Systems |
| ✓ Containerized Battery Energy Storage Systems |
| ✓ Large-Capacity LiFePO4 Battery Pack Manufacturing |

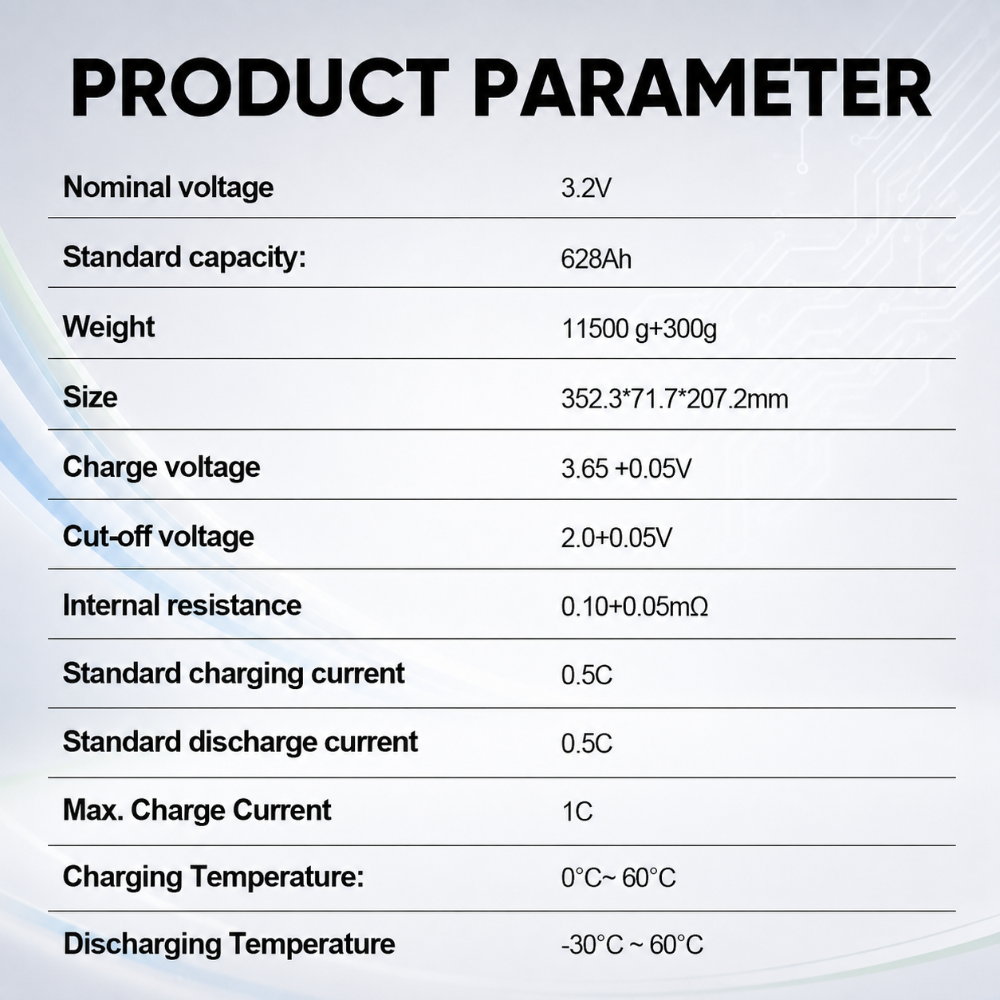

| Parameter | Specification |
|---|---|
| Basic Cell Information | |
| Manufacturer | EVE Power |
| Cell Model | MB56 |
| Cell Type | Prismatic LiFePO4 Cell |
| Electrical Performance | |
| Nominal Capacity | 628Ah |
| Nominal Voltage | 3.2V |
| Nominal Energy | 2009.6Wh |
| End-of-Charge Voltage | 3.65V |
| End-of-Discharge Voltage | 2.5V at T > 0°C 2.0V at T ≤ 0°C |
| Initial AC Resistance | 0.10 ±0.05mΩ at 1kHz |
| Charge and Discharge | |
| Standard Charging Power | 0.5P / 1004.8W |
| Maximum Continuous Charging Power | 0.5P |
| Standard Discharging Power | 0.5P / 1004.8W |
| Maximum Continuous Discharging Power | 0.5P |
| 0.5P Energy Efficiency | ≥94% |
| Cycle and Temperature | |
| Cycle Life | 10,000 Cycles 25°C, ending at 70% SOH |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -30°C to 60°C |
| Recommended Operating Temperature | 10°C to 45°C |
| Dimensions and Weight | |

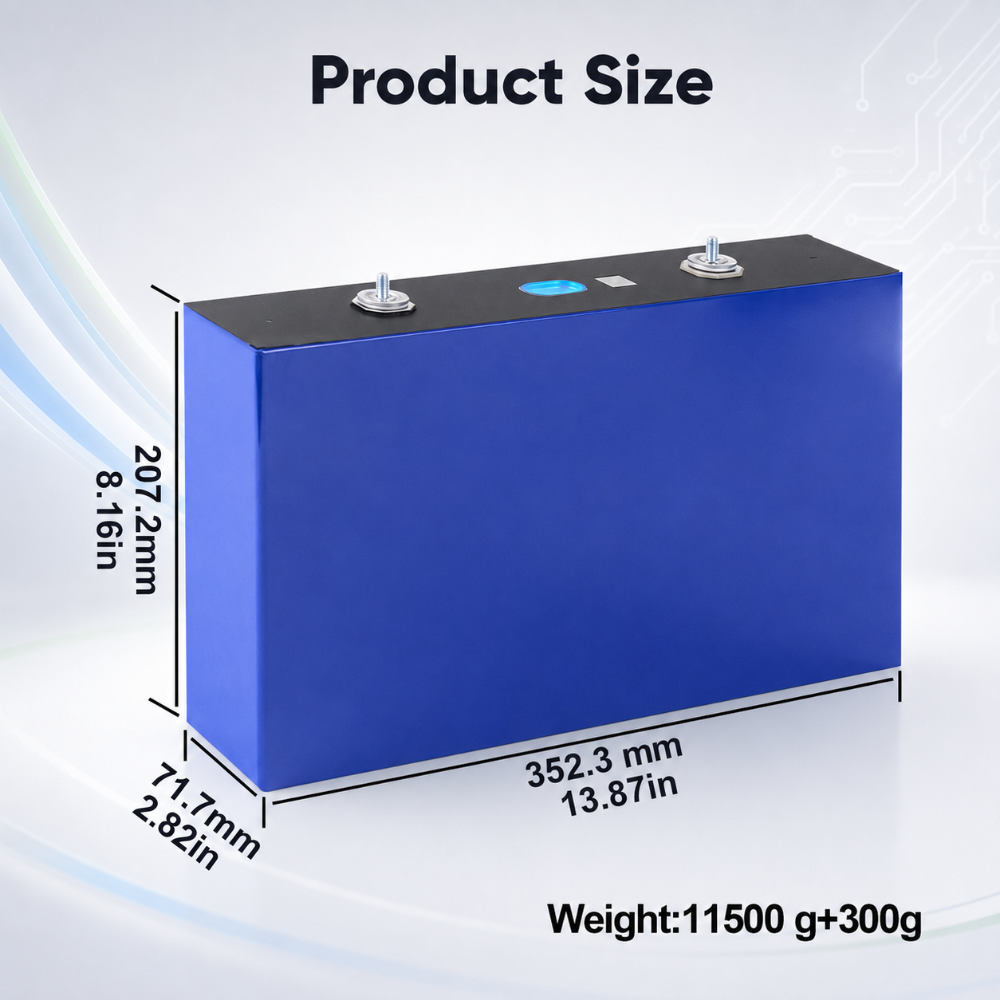

| Cell Dimensions | 352.3 × 71.7 × 207.2mm Length × Thickness × Height with Terminal |
| Cell Weight | 11.5 ±0.3kg |
| Module Integration | |
| Recommended Compression Force | 3,000N to 7,000N |
| Maximum Instantaneous Compression Force | ≤10,000N |
The EVE MB56 is a single LiFePO4 battery cell, not a complete
battery pack. A compatible BMS, busbars, fuses, insulation,
thermal management and mechanical compression structure must
be designed and installed by qualified battery system professionals.
Yes. Ready stock is available in our Poland warehouse.
Customers in EU countries can arrange faster local dispatch
and door-to-door delivery, subject to current inventory.
No. The MB56 is a single 3.2V 628Ah prismatic LiFePO4 cell
for professional battery module and energy storage system integration.
One cell provides 628Ah nominal capacity and 2009.6Wh
nominal energy at a nominal voltage of 3.2V.
The specification states up to 10,000 cycles at 25°C under
defined operating conditions, ending at 70% SOH.
No. Charging below 0°C is prohibited. A compatible BMS must
stop charging when the cell temperature falls outside the
permitted charging range.
Send us your delivery postcode, required quantity and destination
country. We will confirm Poland warehouse inventory, transportation
cost and estimated door-to-door delivery time.
Send us your required quantity, delivery postcode, destination
country and application to confirm Poland warehouse stock,
door-to-door delivery time and quotation.
