✓ 51.2V nominal system (demo)
✓ 10kWh usable energy (demo)
✓ Wall-mounted, space-saving format
✓ Smart BMS protection options
✓ Scalable design subject to model configuration
Price: Request Bulk Price
Price:

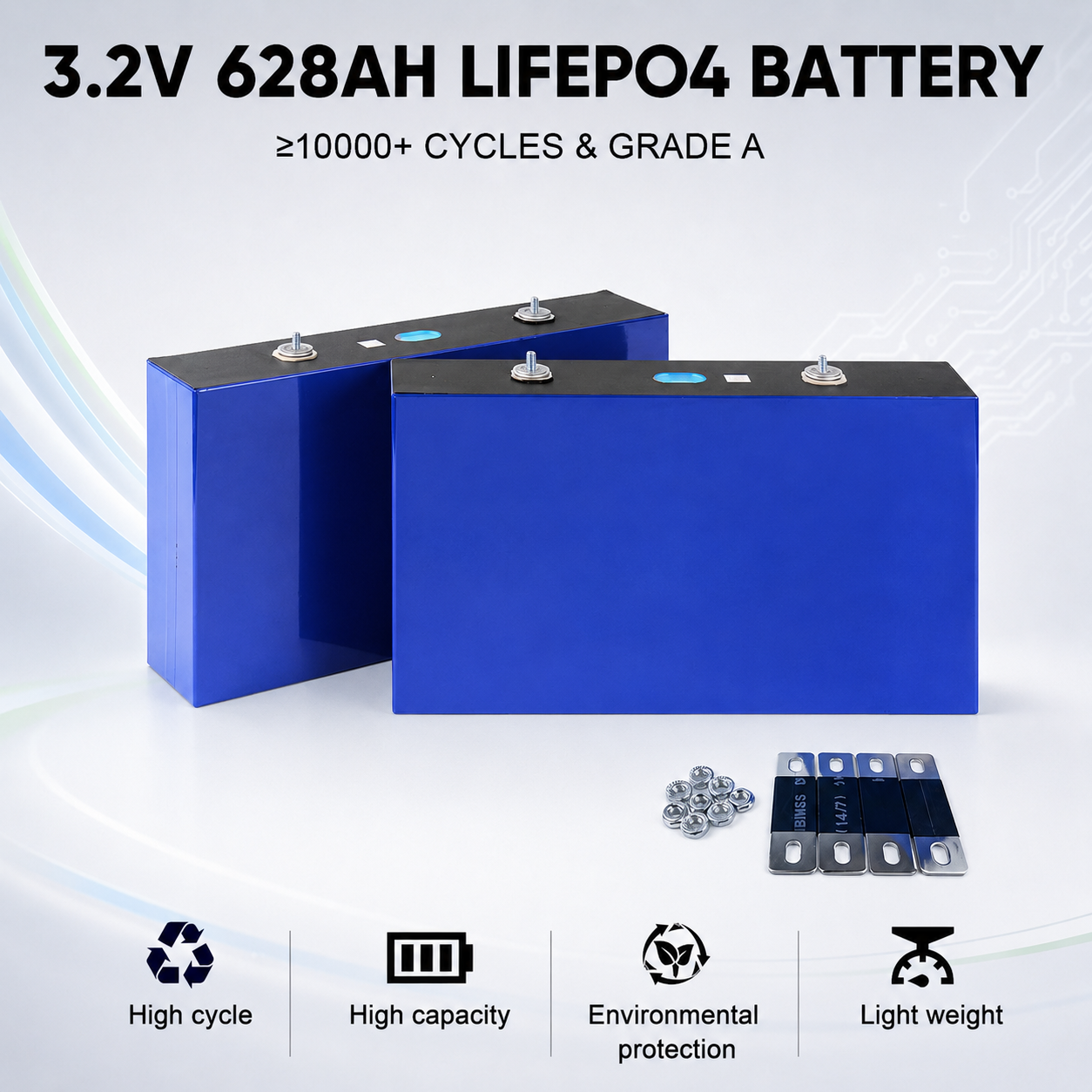

Large-capacity prismatic LFP battery cell with 2009.6Wh nominal energy,
10,000-cycle service life and 0.5P continuous charge and discharge capability.
Available from our Poland warehouse for faster delivery across Europe.

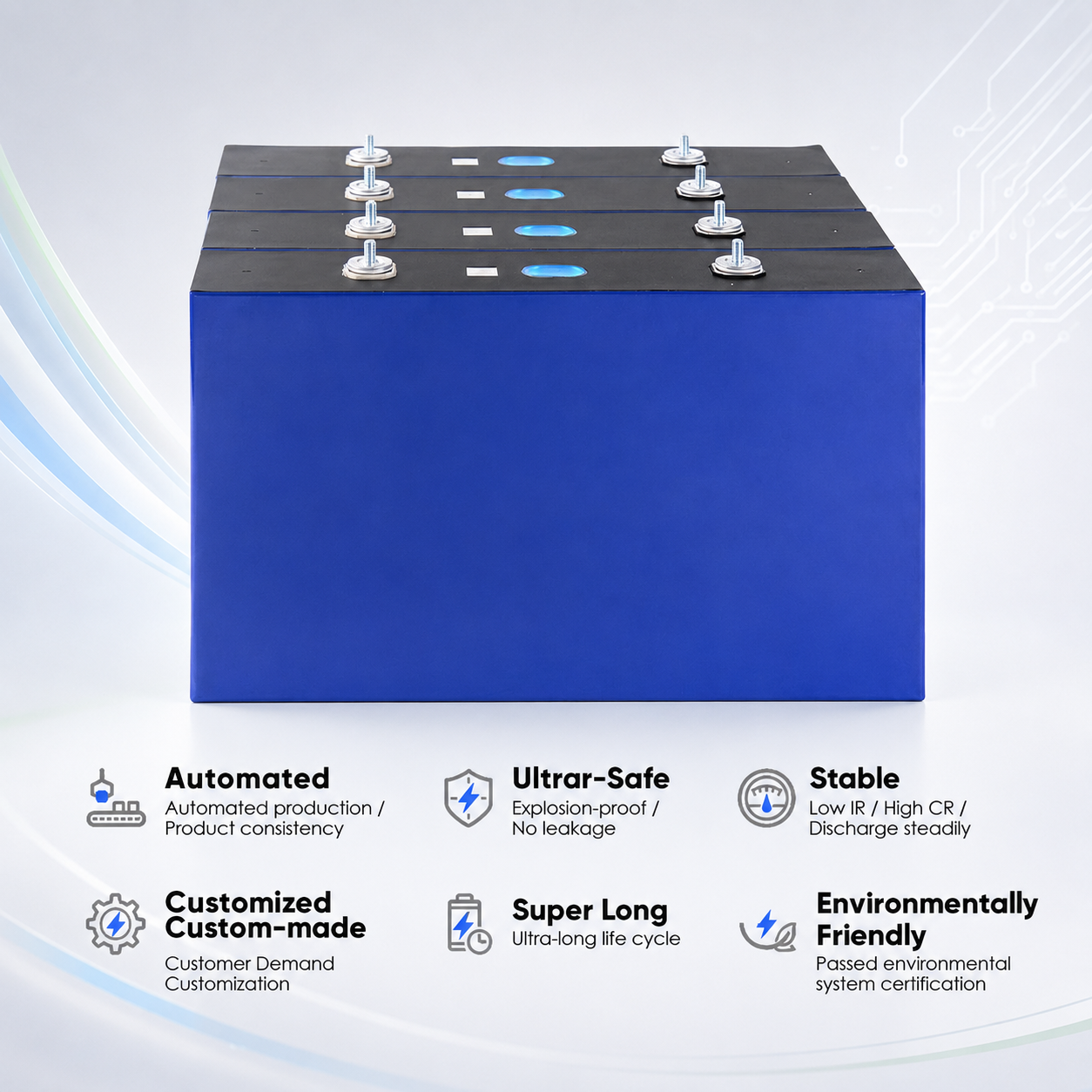

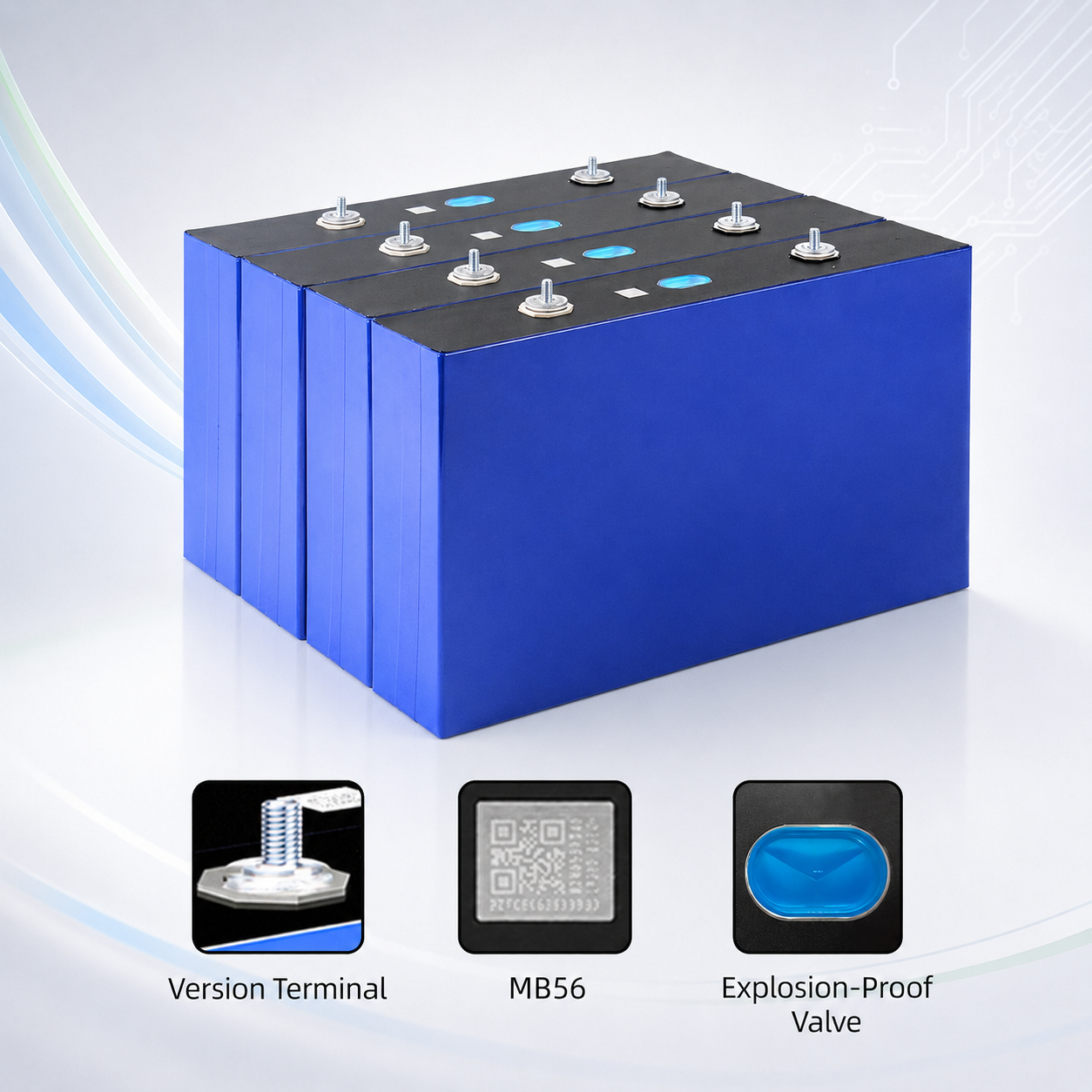

The EVE MB56 is a rechargeable lithium iron phosphate battery cell with a
prismatic aluminum housing. It provides a nominal capacity of 628Ah at 3.2V,
delivering 2009.6Wh of energy per cell. The cell is designed for integration
into professionally engineered energy storage modules and battery packs with
suitable BMS protection, thermal management and structural compression.
| Basic Electrical Parameters | |
| Battery Chemistry | Lithium Iron Phosphate / LFP |
| Cell Structure | Prismatic aluminum-shell cell |
| Nominal Capacity | 628Ah |
| Nominal Voltage | 3.2V |
| Nominal Energy | 2009.6Wh |
| End-of-Charge Voltage | 3.65V |
| End-of-Discharge Voltage | 2.5V above 0°C; 2.0V at or below 0°C |
| Initial AC Internal Resistance | 0.10mΩ ± 0.05mΩ, AC 1kHz |
| Charging and Discharging | |
| Standard Charging Power | 0.5P / 1004.8W at 25°C ± 2°C |
| Maximum Continuous Charging Power | 0.5P / 1004.8W at 25°C ± 2°C |
| Standard Discharging Power | 0.5P / 1004.8W at 25°C ± 2°C |
| Maximum Continuous Discharging Power | 0.5P / 1004.8W at 25°C ± 2°C |
| Cycle Life and Temperature | |
| Cycle Life | 10,000 cycles to 70% SOH at 25°C under specified test conditions |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -30°C to 60°C |
| Recommended Operating Temperature | 10°C to 45°C |

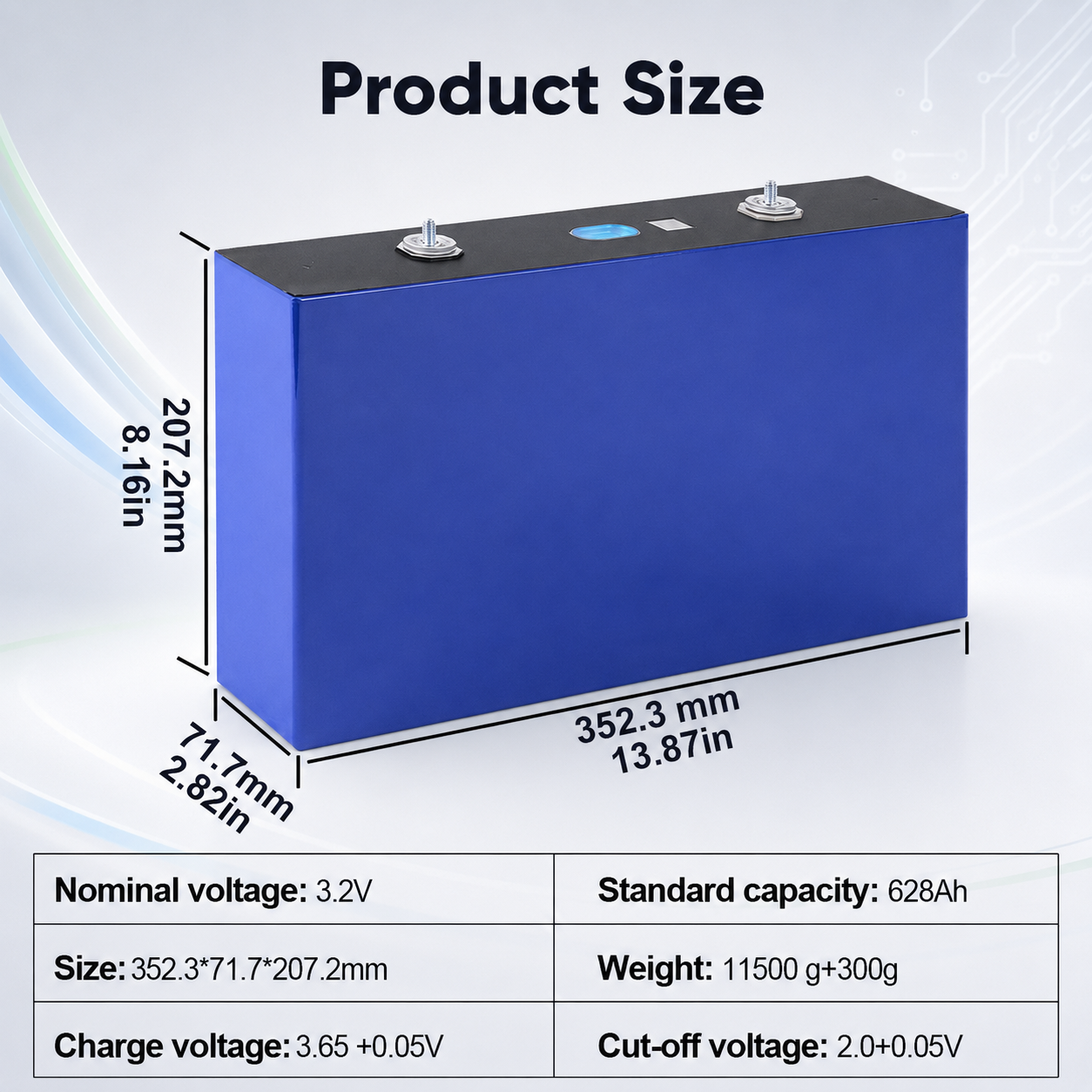

| Dimensions and Weight | |
| Length | 352.3mm ± 0.5mm |
| Thickness | 71.7mm ± 0.5mm |
| Height with Terminal | 207.2mm ± 0.5mm |
| Height without Terminal | 205.1mm ± 0.5mm |
| Pole Center Distance | 180.0mm ± 0.3mm |
| Cell Weight | 11.5kg ± 0.3kg |
| Storage and Warehouse | |
| One-Year Storage Temperature | 0°C to 35°C at delivery SOC |
| One-Month Storage Temperature | -20°C to 45°C at delivery SOC |
| Recommended Long-Term Storage | 30%–40% SOC, 0°C–25°C and relative humidity ≤60% |
| EU Warehouse | Poland warehouse stock available |
Contact us for Poland warehouse stock, order quantity, European delivery time,
battery matching support and bulk purchase pricing.
Technical data is based on the supplied EVE MB56 sample specification.
Product parameters and inventory may be updated. Please confirm the latest specification,
stock status and system compatibility before placing an order.
