Prismatic lithium iron phosphate battery cell with 280Ah nominal capacity,
896Wh nominal energy, at least 8,000-cycle performance and 0.5P maximum
continuous discharge power. Available from our Poland warehouse for faster
delivery across Europe.

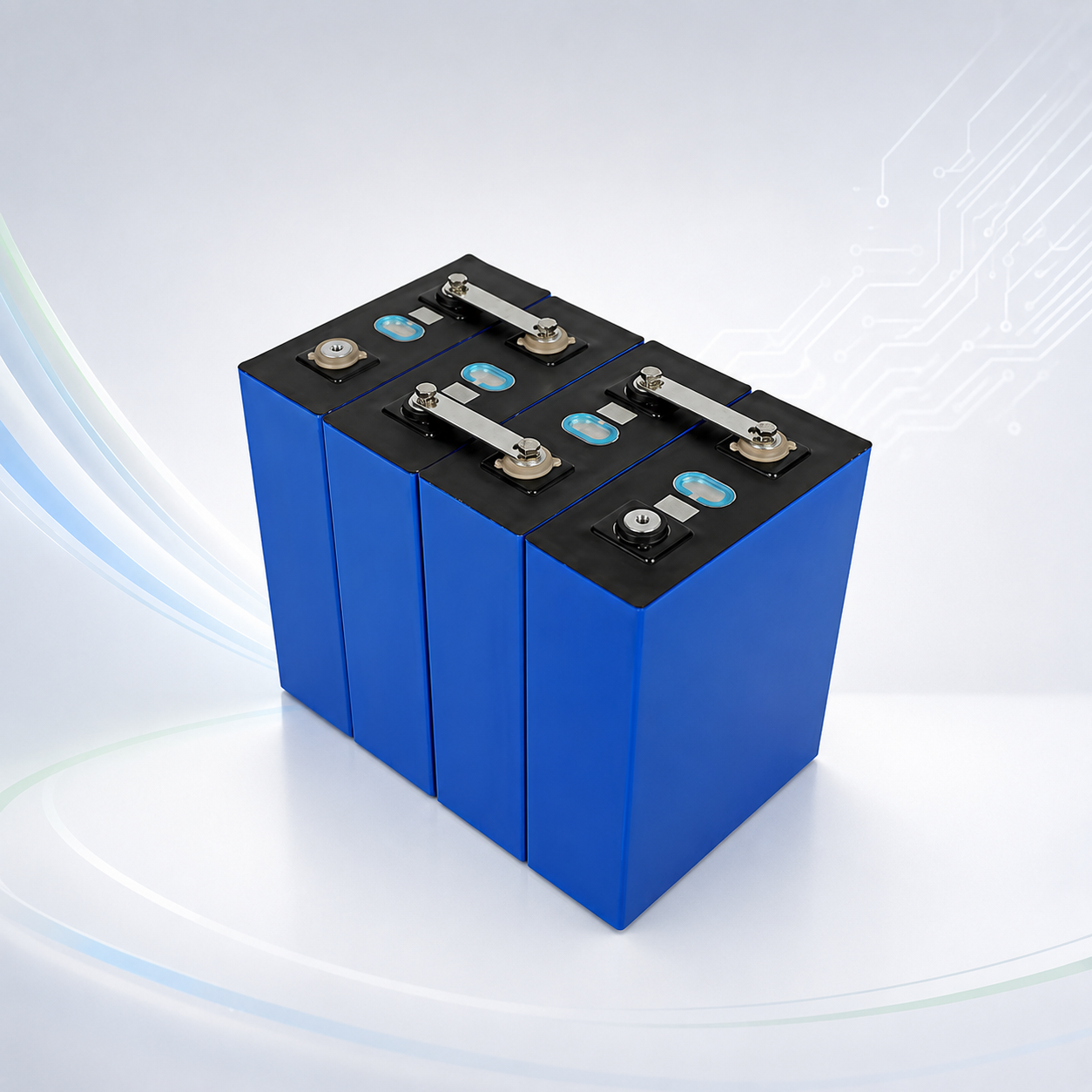

The CATL CB310 is a 3.2V 280Ah prismatic lithium iron phosphate battery cell
designed for energy storage applications. Each cell provides 896Wh nominal
energy and supports 0.25P standard charging and discharging, together with
0.5P maximum continuous discharge power. The cell must be integrated into
a professionally designed battery module or system with suitable BMS protection,
structural compression, thermal management and electrical protection.
| Basic Electrical Parameters | |
| Brand | CATL |
| Cell Model | CB310 |
| Battery Chemistry | Lithium Iron Phosphate / LiFePO4 |
| Cell Structure | Prismatic battery cell |
| Nominal Capacity | 280Ah |
| Nominal Voltage | 3.2V |
| Nominal Energy | 896Wh |
| Operating Voltage | 2.5V–3.65V above 0°C; 2.0V–3.65V at or below 0°C |
| Initial Impedance | 0.17mΩ ± 0.05mΩ at 1kHz and 40% SOC |
| Shipping Capacity | 112Ah ± 1Ah at 40% SOC |
| Charging and Discharging | |
| Standard Charging Power | 0.25P at 25°C ± 2°C |
| Standard Charging Voltage | Maximum 3.65V per cell |
| Standard Discharging Power | 0.25P at 25°C ± 2°C |
| Maximum Continuous Discharge Power | 0.5P |
| Discharge Cut-Off Voltage | 2.5V above 0°C; 2.0V at or below 0°C |
| Cycle Life and Temperature | |
| Cycle Performance | At least 8,000 cycles under specified test conditions |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 60°C, humidity below 85% and no condensation |
| Capacity at 55°C | At least 280Ah under specified test conditions |
| Capacity at -20°C | At least 155Ah under specified test conditions |
| Dimensions and Weight | |
| Width | 173.9mm ± 0.8mm |
| Height | 207.2mm ± 0.8mm |
| Thickness | 71.7mm ± 0.8mm |
| Cell Weight | 5.34kg ± 0.30kg |
| Application Altitude | Maximum 2,000m |
| Warehouse Information | |
| EU Warehouse | Poland warehouse stock available |
Contact us for Poland warehouse stock, required quantity, European delivery time,
technical specification confirmation and bulk purchase pricing.
Technical data is based on the supplied CATL CB310 280Ah specification.
The supplied document contains development-stage restrictions. Please confirm
the latest formal product specification, permitted application, stock status
and system compatibility before ordering.
