✓ 51.2V nominal system (demo)
✓ 10kWh usable energy (demo)
✓ Wall-mounted, space-saving format
✓ Smart BMS protection options
✓ Scalable design subject to model configuration
Price: Request Bulk Price
Price:
Original price was: $95.00.$80.21Current price is: $80.21.
High-capacity CATL prismatic LFP cell with 1004.8Wh nominal energy,
low internal resistance and 8,000-cycle performance for energy storage applications.
CATL 314Ah battery cells are available from our Poland warehouse
for eligible European orders. Poland is the only overseas warehouse
currently available for this product.
| ✓ | Local dispatch from Poland |
| ✓ | Shorter delivery time for eligible EU destinations |
| ✓ | Inventory subject to real-time confirmation |
314Ah Typical Capacity | 1004.8Wh Typical Energy | 8,000 Cycle Performance |
3.2V Nominal Voltage | 0.18mΩ Initial Impedance | 5.49kg Cell Weight |

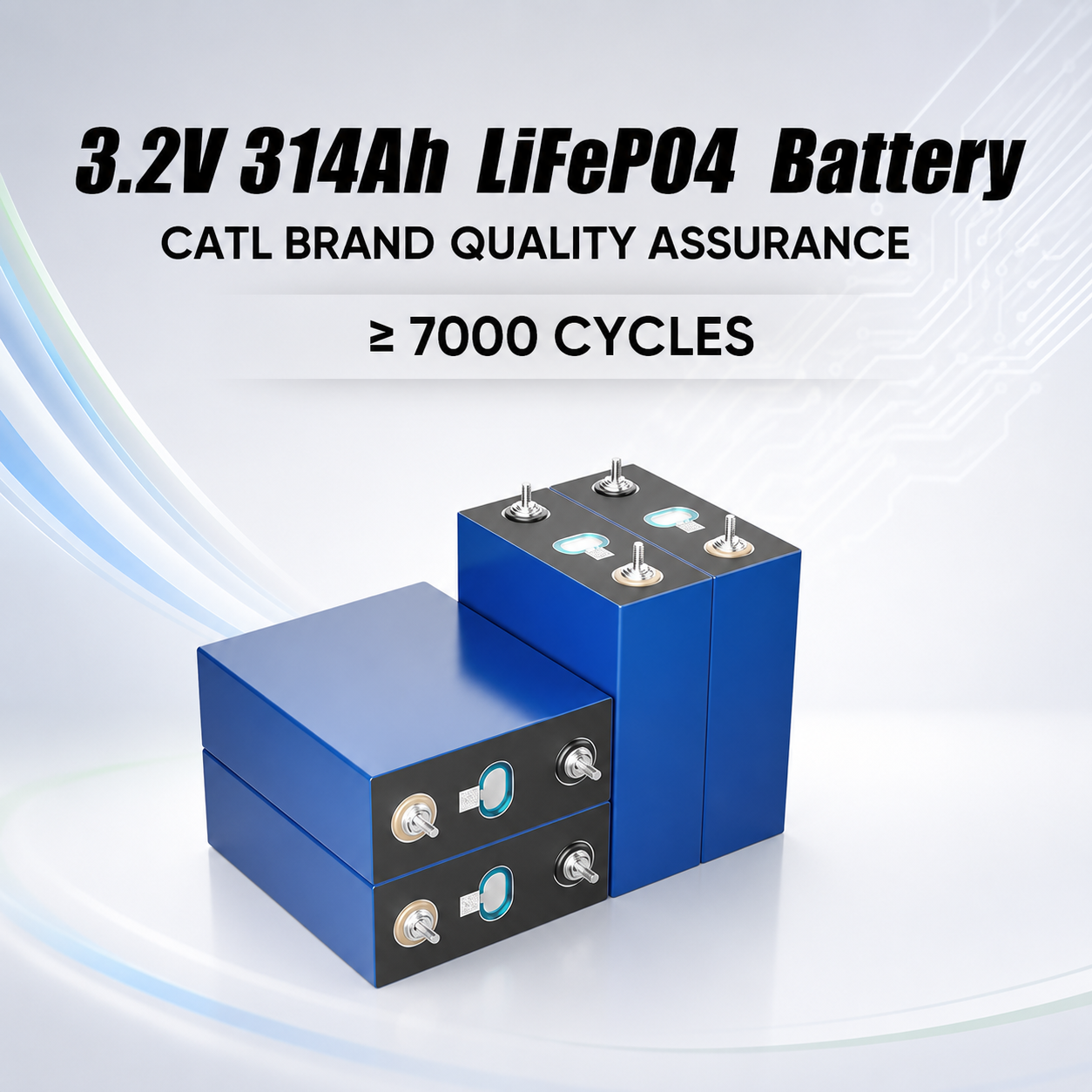

The CATL CBC00 is a 3.2V 314Ah prismatic LiFePO4 battery cell
developed for energy storage systems. Each cell provides 1004.8Wh
of typical energy with an initial impedance of 0.18 ±0.05mΩ.
The cell supports 0.5P standard and continuous charging and discharging
under the specified operating conditions, helping deliver stable energy
output for long-term storage projects.
Under the stated 25°C cycle test conditions, the CATL 314Ah cell
provides 8,000 cycles before reaching 70% state of health.
Provides 1004.8Wh of typical energy per cell for high-capacity
energy storage battery systems.
Rated for 8,000 cycles under specified 25°C test conditions,
ending at 70% state of health.

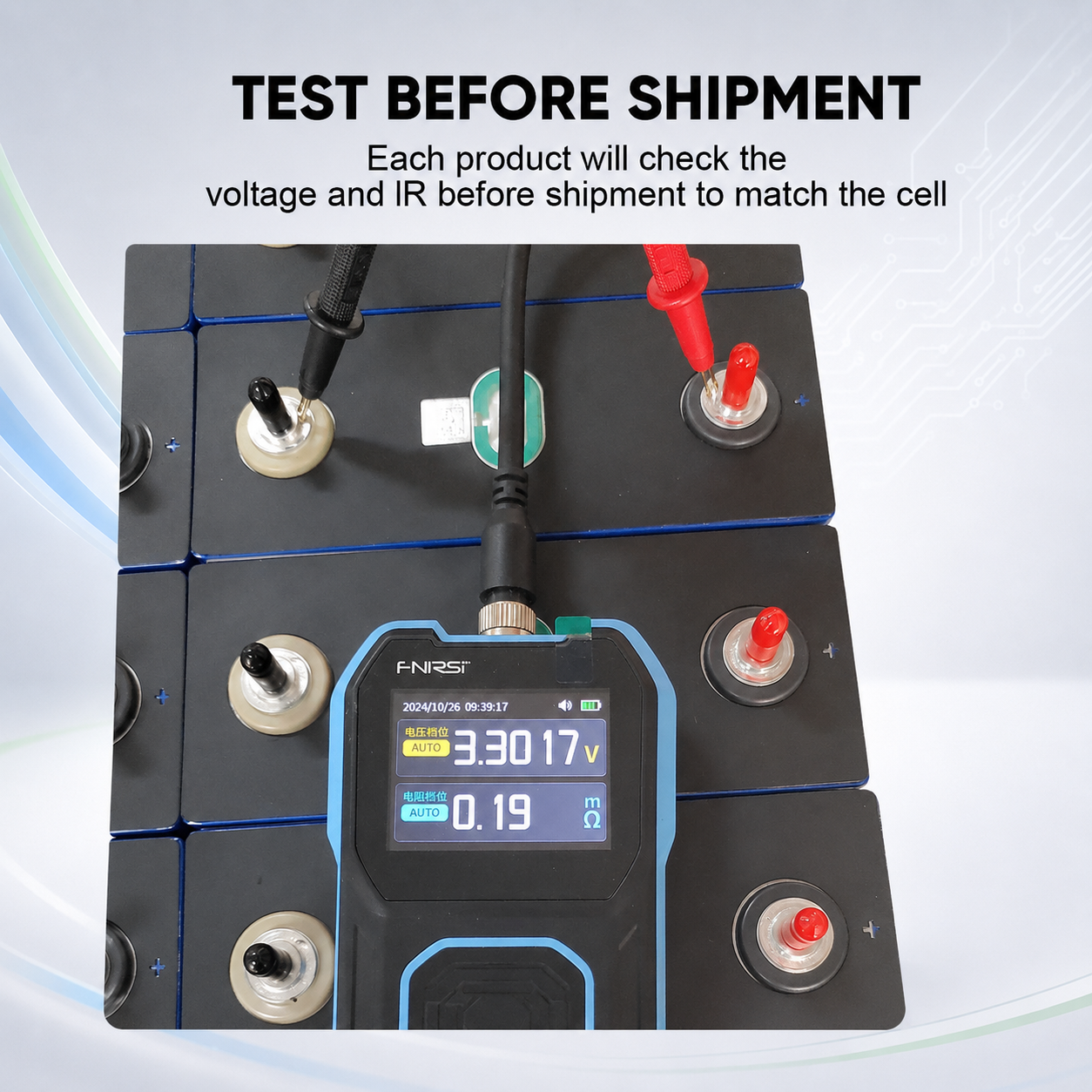

Initial impedance of 0.18 ±0.05mΩ supports efficient energy transfer
and stable battery pack performance.
Supports 0.5P standard and continuous charging and discharging
under the specified 25°C conditions.

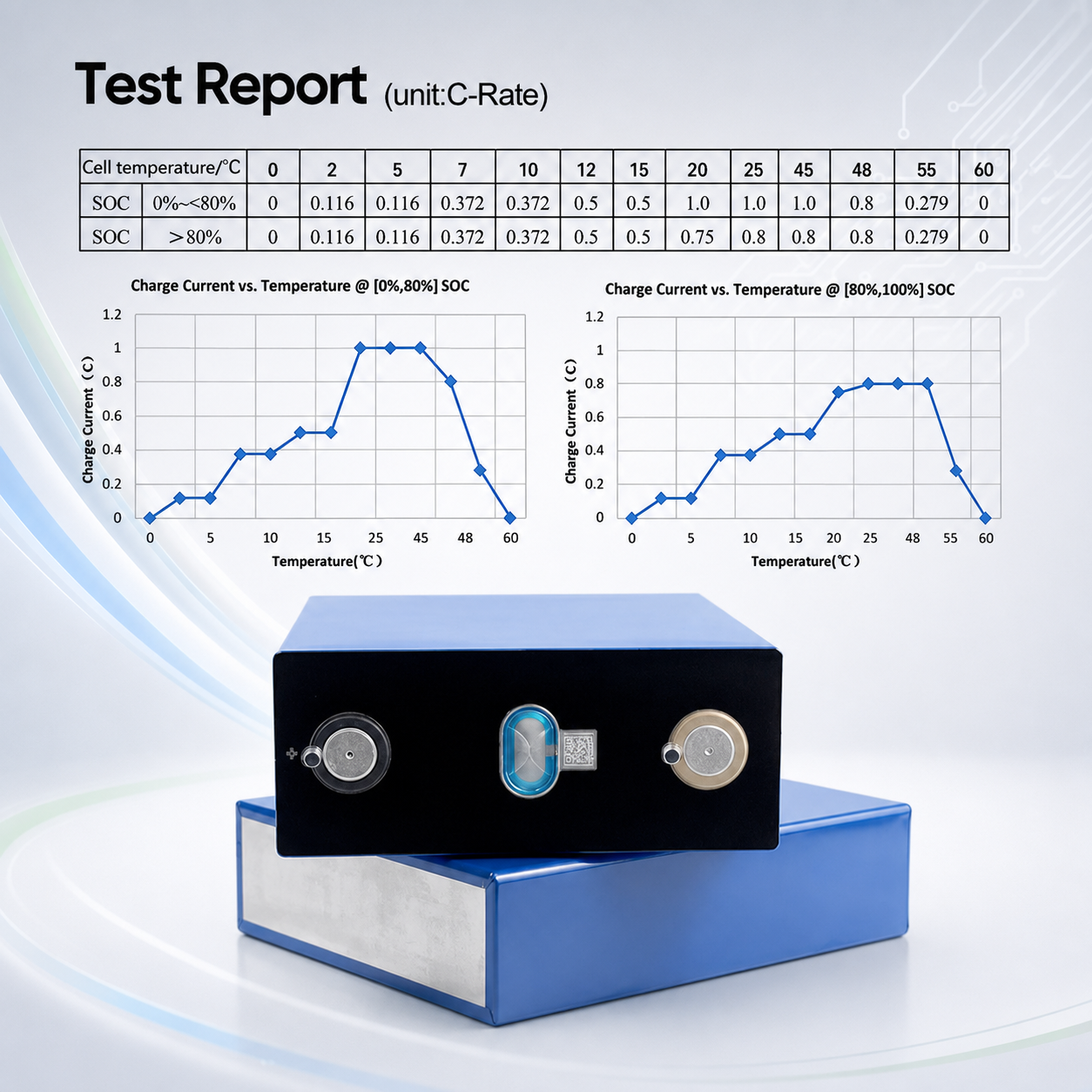

Supports charging from 0°C to 60°C and discharging from -20°C to 60°C.
Local Poland warehouse inventory is available for faster delivery
to eligible European destinations.
| ✓ Residential Solar Energy Storage Systems |
| ✓ Commercial and Industrial Energy Storage |
| ✓ Grid-Tied and Off-Grid Solar Battery Systems |
| ✓ UPS and Emergency Backup Power Systems |
| ✓ Telecom and Remote-Site Energy Storage |
| ✓ Customized LiFePO4 Battery Modules and Packs |
| Parameter | Specification |
|---|---|
| Basic Cell Information | |
| Cell Manufacturer | CATL |
| Cell Model | CBC00 |
| Battery Chemistry | LiFePO4 / LFP |
| Cell Construction | Prismatic Aluminum Case |
| Electrical Performance | |
| Typical Capacity | 314Ah |
| Nominal Voltage | 3.2V |
| Typical Energy | 1004.8Wh |
| Operating Voltage | 2.5V–3.65V at T > 0°C 2.0V–3.65V at T ≤ 0°C |
| Initial Impedance | 0.18 ±0.05mΩ at 1kHz |
| Maximum Charge Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V at T > 0°C 2.0V at T ≤ 0°C |
| Charge and Discharge Performance | |
| Standard Charging Power | 0.5P / 502.4W |
| Maximum Continuous Charging Power | 0.5P / 502.4W |
| Standard Discharging Power | 0.5P / 502.4W |
| Maximum Continuous Discharging Power | 0.5P / 502.4W |
| Capacity at 55°C | ≥314Ah |
| Capacity at -20°C | ≥188Ah |
| Cycle Life and Temperature | |
| Cycle Performance | 8,000 Cycles Under specified conditions, ending at 70% SOH |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -20°C to 60°C |
| Continuous Discharge Temperature Rise | ≤10°C |
| Storage and Physical Data | |
| Storage Temperature | -35°C to 60°C |
| Storage Humidity | <85% RH, no condensation |
| Self-Discharge Rate | ≤3.5% during first month ≤3.0% per month afterward |
| Application Altitude | <5000m |

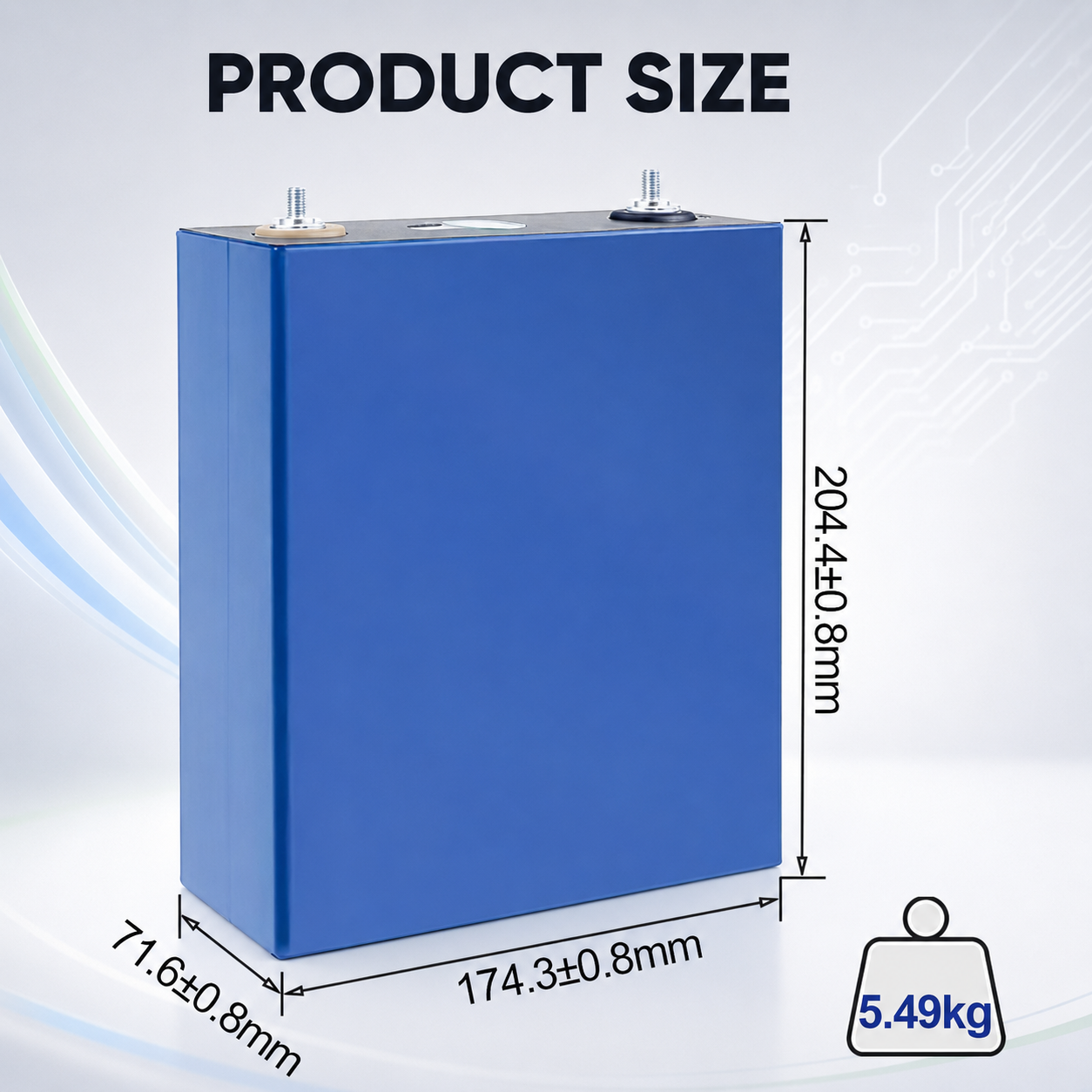

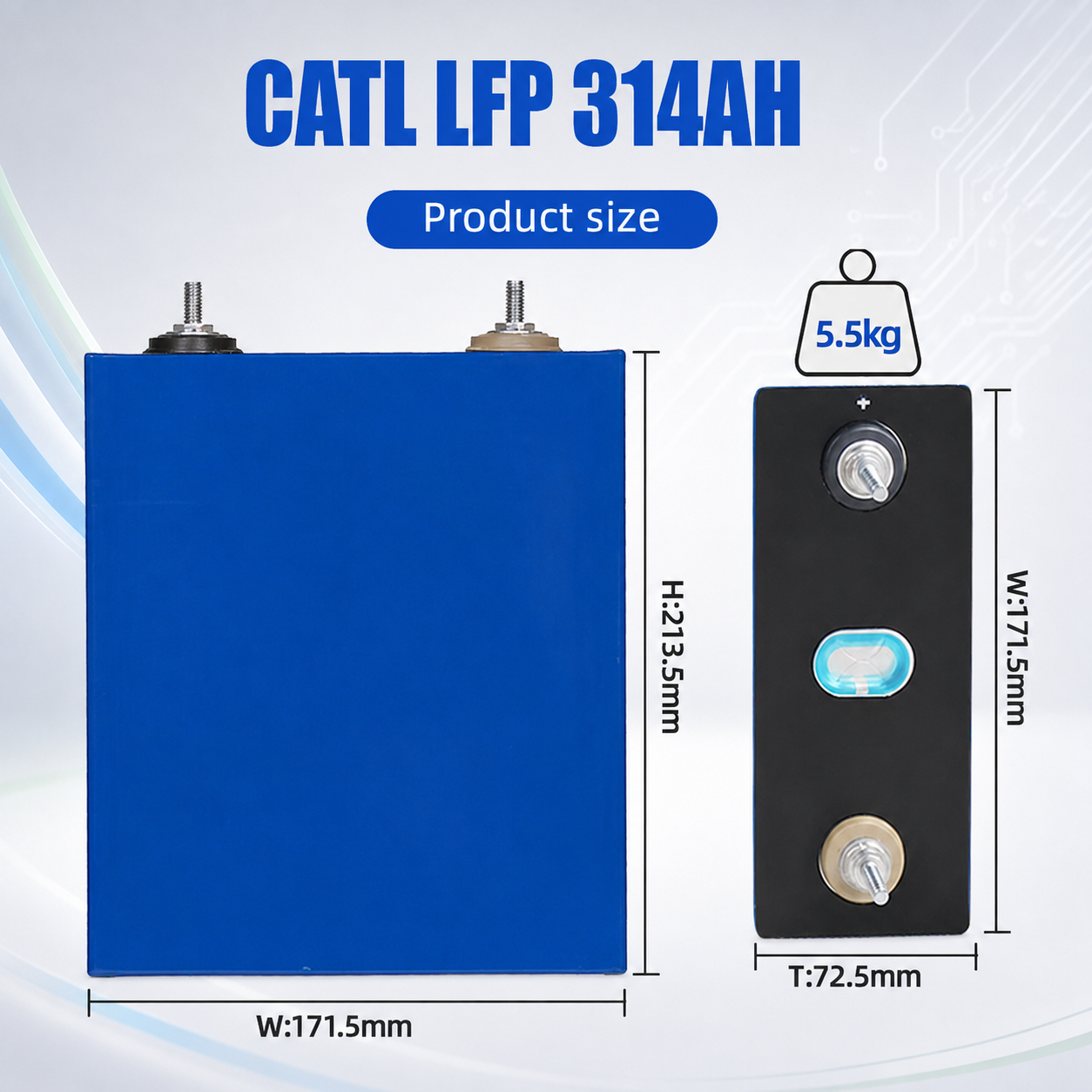

| Cell Dimensions | 174.26 × 71.55 × 207.01mm
|
| Shoulder Height | 204.44 ±0.8mm |
| Cell Weight | 5.49 ±0.3kg |
| Poland Warehouse Availability | |
| Overseas Warehouse Location | Poland, European Union |
| Stock Status | Ready stock, subject to confirmation |
| Delivery Coverage | Eligible European destinations |
One CATL CBC00 cell provides 1004.8Wh of typical energy
with a nominal voltage of 3.2V and a capacity of 314Ah.
The specification states 8,000 cycles under defined 25°C,
0.5P charging and discharging conditions, ending at 70% SOH.
Yes. The CATL 314Ah cell is designed for energy storage applications,
including residential, commercial, industrial, grid-tied and off-grid systems.
Yes. A compatible BMS is required to monitor and protect cell voltage,
current, temperature, charging, discharging and battery pack operation.
The specification states an assembly preload range of 500N to 5000N.
The battery pack structure should be designed by qualified professionals
according to CATL application requirements.
Yes. Ready stock is available from our Poland warehouse for eligible
European orders. Poland is currently the only overseas warehouse
available for this product.
Send us your required quantity, battery pack voltage, application and
destination country to confirm Poland warehouse stock, delivery time
and quotation.
