✓ 51.2V nominal system (demo)
✓ 10kWh usable energy (demo)
✓ Wall-mounted, space-saving format
✓ Smart BMS protection options
✓ Scalable design subject to model configuration
Price: Request Bulk Price
Price:
High-capacity stackable lithium iron phosphate battery built with
sixteen EVE 334Ah cells, a 200A JK smart BMS, 2A active balancing
and CAN, RS485 communication for solar energy storage systems.
17kWh Battery Energy | 51.2V Rated Voltage | 334Ah Battery Capacity |
200A Maximum Current | 8,000 Cycle Performance | 2A Active Balancing |
This stackable LiFePO4 energy storage battery features a rated
voltage of 51.2V, a battery capacity of 334Ah and a calculated
total energy of 17,100.8Wh.
The battery is built with sixteen EVE 334Ah prismatic LiFePO4 cells
and managed by a JK V19-PB2A16S20P smart battery management system.
It supports up to 200A charging and discharging current for
residential solar, commercial storage and backup power applications.

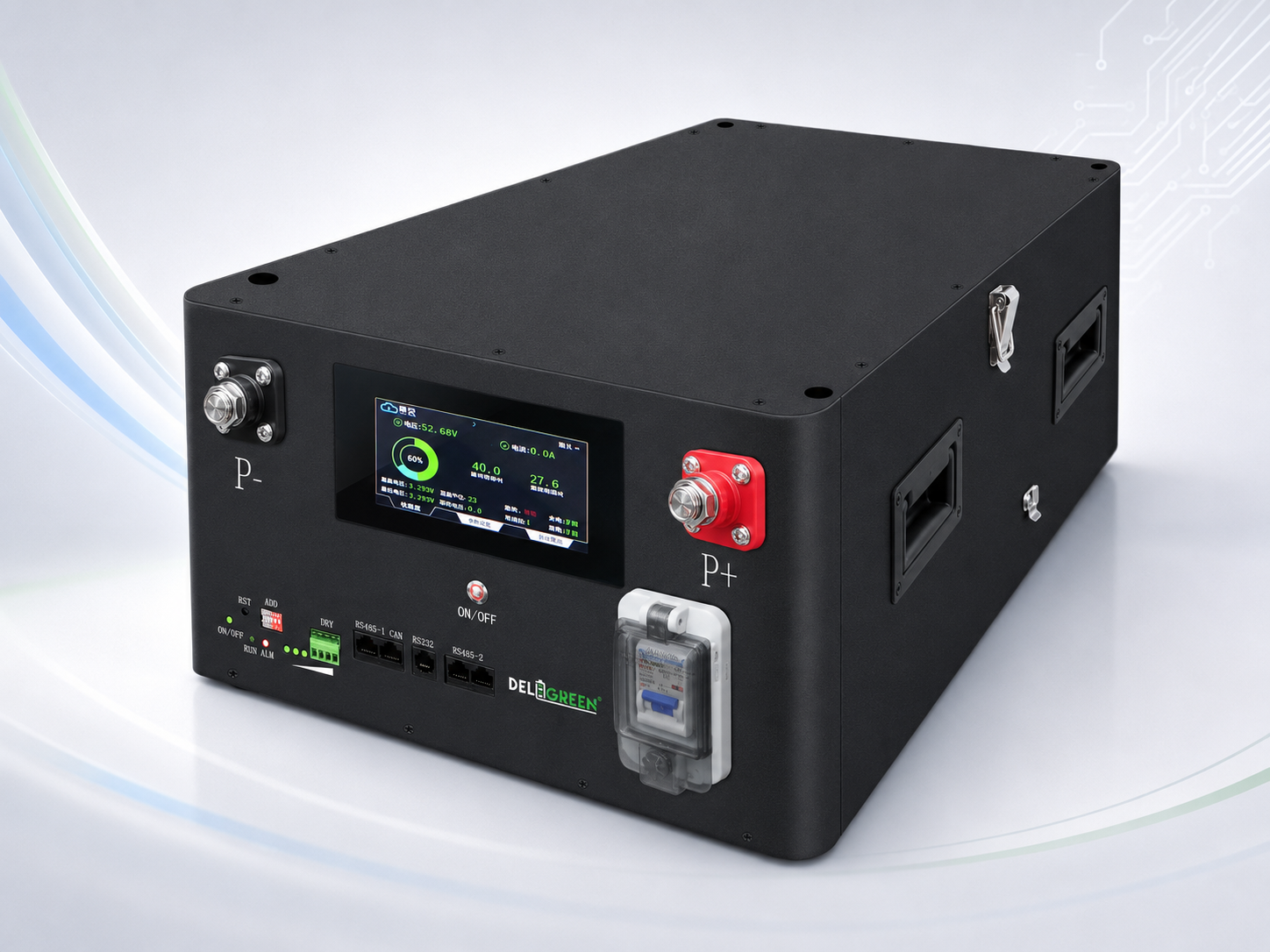

The low-profile horizontal cabinet provides a space-saving
stackable installation solution. Integrated 2A active balancing
helps maintain cell consistency, while multiple communication
interfaces support compatible low-voltage solar inverters.
Provides 17,100.8Wh of calculated battery energy for residential
solar storage, emergency backup power, commercial energy management
and other low-voltage energy storage applications.
Built with sixteen EVE 334Ah prismatic lithium iron phosphate
cells for stable output, long-term reliability and stationary
energy storage performance.
The horizontal cabinet design supports space-efficient placement
and allows compatible battery packs to be arranged in a stacked
energy storage installation.
Supports a maximum charging current of 200A and maximum
discharging current of 200A for compatible high-power inverter
and backup energy applications.
The JK V19-PB2A16S20P smart BMS monitors battery voltage,
current, temperature and operating status while providing
multiple electrical and thermal protection functions.
The active balancer transfers energy between cells when voltage
differences are detected, helping improve cell consistency and
maintain stable battery pack performance.
Designed for up to 8,000 cycles at 80% depth of discharge
under the operating conditions stated in the battery specification.
Preloaded communication protocols support compatible low-voltage
inverter platforms including Sunsynk, Solis, Victron, Deye,
LuxPower, Voltacon and other supported brands.
The battery system supports up to sixteen compatible units
for expanded energy storage capacity when installed according
to the approved electrical and communication configuration.
All connected battery packs should use compatible specifications,
firmware, BMS settings, state of charge and communication protocols.
These batteries must not be connected in series.

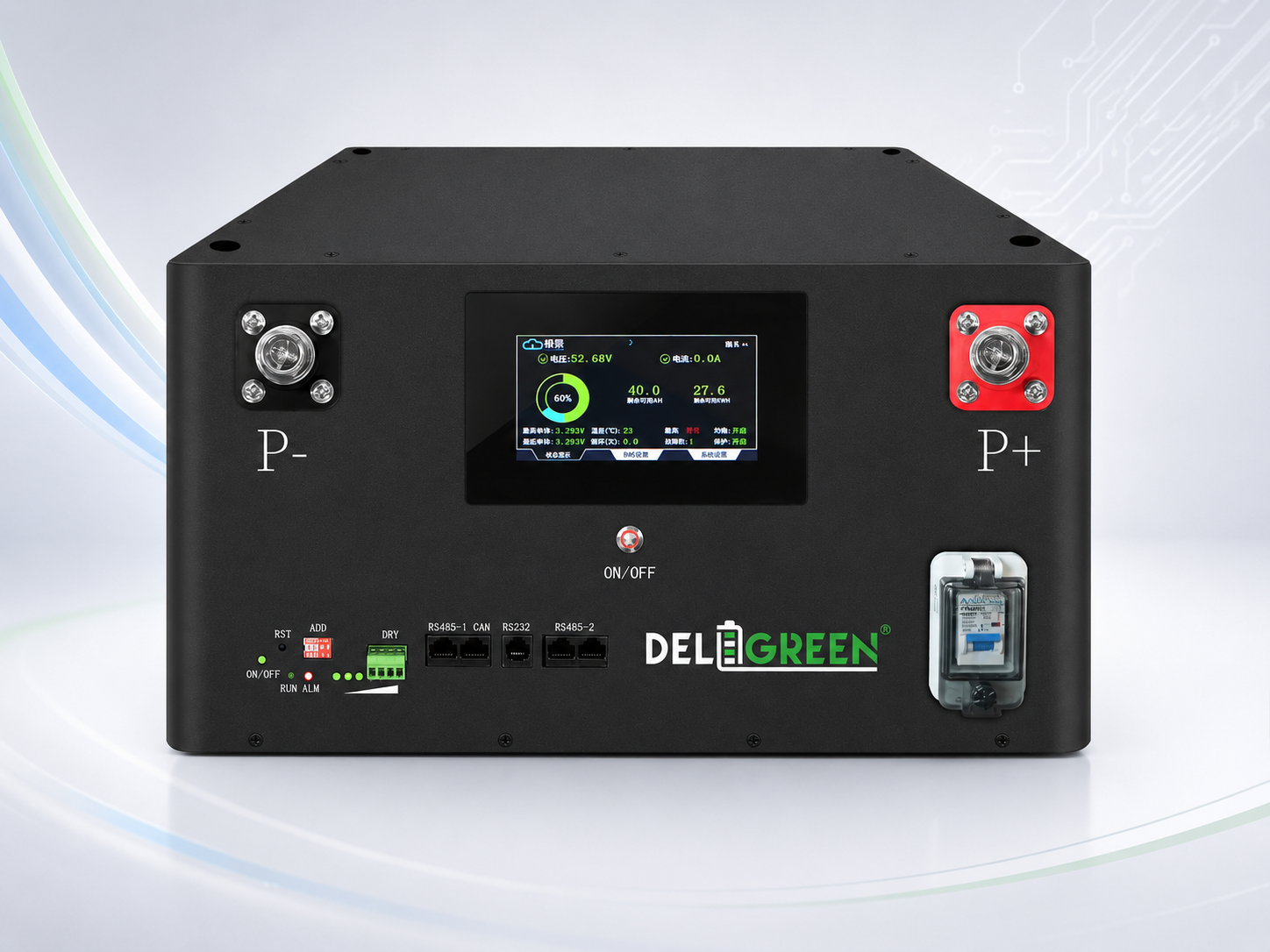

The battery provides CAN, RS485 communication
interfaces for battery data transmission, battery pack
communication, system monitoring and compatible inverter integration.
Communication compatibility depends on the exact inverter model,
firmware version, selected protocol and communication cable
definition. Confirm compatibility before ordering or installation.
| Sunsynk | Solis | Victron |
| Deye | LuxPower | Voltacon |
Brand names indicate available communication protocol options.
Compatibility must be confirmed using the exact inverter model
and firmware version.
| ✓ Overcharge Protection | ✓ Over-Discharge Protection |
| ✓ Charge Overcurrent Protection | ✓ Discharge Overcurrent Protection |
| ✓ High-Temperature Protection | ✓ Low-Temperature Protection |
| ✓ Short-Circuit Protection | ✓ Active Cell Balancing |
| ✓ Residential Solar Energy Storage |
| ✓ Grid-Tied Home Battery Systems |
| ✓ Off-Grid Solar Battery Systems |
| ✓ Household Emergency Backup Power |
| ✓ Commercial and Office Energy Storage |
| ✓ Telecom and Communication Backup Power |
| Parameter | Specification |
|---|---|
| Basic Information | |
| Battery Type | Stackable LiFePO4 Energy Storage Battery |
| Cell Brand and Capacity | EVE 334Ah LiFePO4 Cells |
| Cell Quantity | 16 Cells |
| Cell Configuration | 16S1P |
| Electrical Performance | |
| Rated Voltage | 51.2V |
| Nominal Capacity | 334Ah |
| Minimum Capacity | 334Ah |
| Total Battery Energy | 17,100.8Wh |
| Maximum Charge Voltage | 57.6V |
| Discharge Cut-Off Voltage | 43.2V |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | 200A |
| BMS and Communication | |
| Smart BMS | JK V19-PB2A16S20P |
| Active Balancer | 2A Active Balancing |
| Communication Ports | CAN, RS485 |
| Maximum System Expansion | Up to 16 Compatible Battery Units |
| Cycle Life and Warranty | |
| Cycle Life | Up to 8,000 Cycles at 80% DOD |
| Product Warranty | 10 Years |
| Operating Environment | |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -20°C to 60°C |
| Storage Temperature | 1 Month: 0°C to 35°C 3 Months: 25 ±2°C |
| Dimensions and Weight | |
| Product Dimensions | 820 × 500 × 460mm |
| Package Type | Plywood Case |
| Battery Weight | Approximately 122kg |
| Cabinet Structure | Horizontal Stackable Metal Cabinet |
57.6V Bulk Charge Voltage | 55.2V Float Voltage | 43.2V Low DC Cut-Off |
The battery is supplied with a 10-year warranty according to the
applicable warranty conditions. Keep proof of purchase and provide
a clear description of the issue when submitting a warranty request.
Due to the battery weight, suitable lifting equipment and sufficient
personnel must be used when moving, stacking or installing the battery.
Installation must be completed by qualified personnel in accordance
with local electrical regulations. Confirm grounding, polarity,
communication cables, terminal torque and inverter settings before use.
Never work on the battery while it is powered or connected to the
electrical grid. Disconnect all power sources before installation,
maintenance or inspection.
Use only with compatible 51.2V LiFePO4 energy storage equipment.
Do not connect the batteries in series or combine them with batteries
using other chemistries.
The revised battery configuration provides 334Ah capacity and
approximately 17kWh of energy at a rated voltage of 51.2V.
The battery is configured with sixteen EVE 334Ah prismatic
lithium iron phosphate cells.
The maximum charging current is 200A and the maximum
discharging current is 200A.
Yes. The JK smart BMS includes a 2A active balancer to transfer
energy between cells and help maintain cell voltage consistency.
Yes. It provides CAN, RS485 and RS232 communication and supports
protocols for multiple compatible low-voltage inverter brands.
Confirm the exact inverter model before ordering.
Up to sixteen compatible battery units can be connected when
installed according to the approved electrical and communication design.
10-year.
Send us your required quantity, inverter model, destination country,
delivery postcode and energy storage requirements to confirm
compatibility, configuration, delivery time and quotation.
