✓ 51.2V nominal system (demo)
✓ 10kWh usable energy (demo)
✓ Wall-mounted, space-saving format
✓ Smart BMS protection options
✓ Scalable design subject to model configuration
Price: Request Bulk Price
Price:
$1,825.40
High-capacity energy storage battery featuring CALB 314Ah cells,
a built-in 200A smart BMS, 3A active balancing, app monitoring
and integrated electrical protection.
16kWh Rated Energy | 51.2V Nominal Voltage | 314Ah Nominal Capacity |
200A Maximum Current | 8,000 Cycle Performance | 3A Active Balancing |
This floor-standing LiFePO4 battery provides 51.2V nominal voltage,
314Ah capacity and approximately 16kWh of rated energy for residential
and commercial energy storage applications.
The battery is equipped with sixteen 3.2V CALB 314Ah prismatic cells,
a 16S 200A smart battery management system and a 3A active balancer.
The integrated system monitors voltage, current, temperature,
capacity and alarm conditions.
CAN and RS485 communication interfaces support connection with
compatible low-voltage inverters. The wheeled floor-standing cabinet
simplifies positioning while the built-in DC breaker and safety
protection functions support safer system operation.

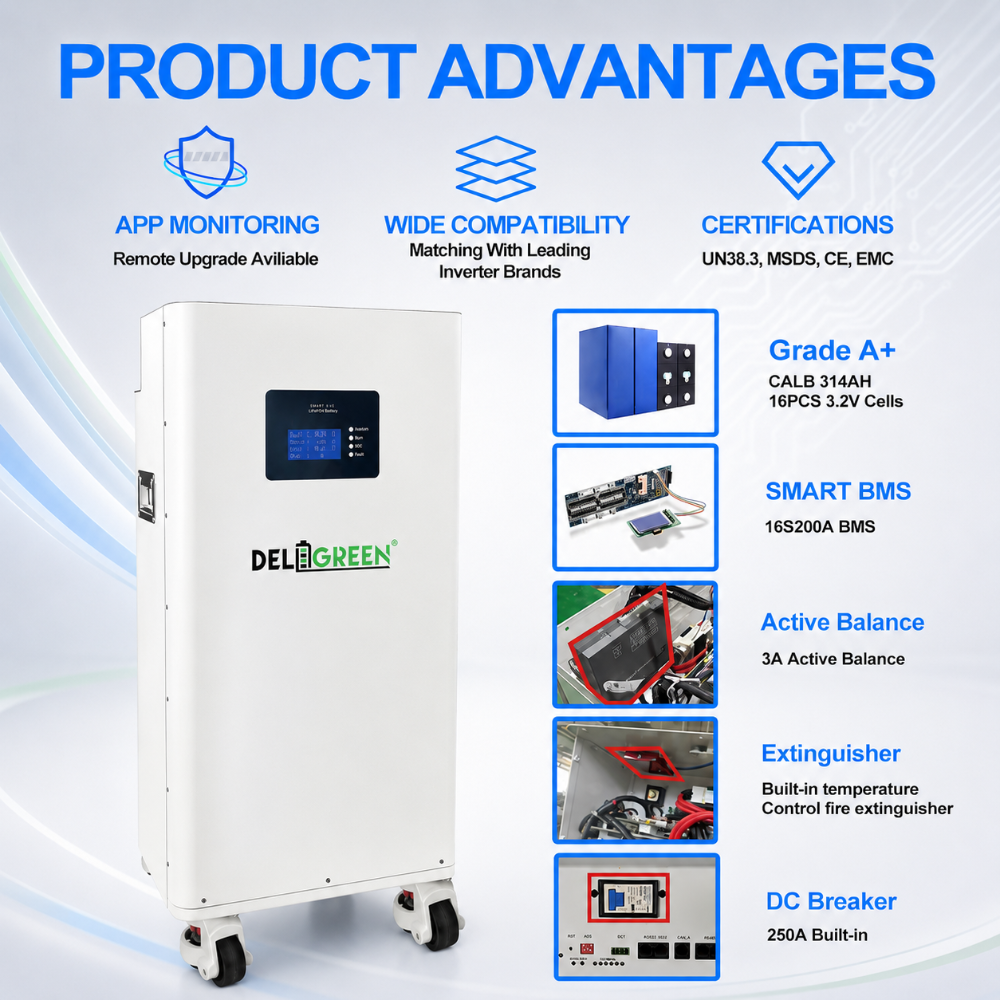

Built with sixteen CALB 314Ah prismatic lithium iron phosphate cells
for high energy capacity and stable long-term storage performance.
The intelligent BMS monitors battery voltage, current, temperature,
remaining capacity, operating status and alarm information.
The active balancing system transfers energy between cells,
helping reduce cell voltage differences and maintain consistent
battery pack performance.
The mobile BMS application allows users to view SOC, voltage,
current, temperature, cycle information and configurable
protection parameters.
The cabinet configuration includes a built-in DC circuit breaker
and temperature-controlled fire suppression device for additional
internal protection.
CAN and RS485 communication support connection with compatible
low-voltage inverter systems. The exact inverter model and
communication protocol should be confirmed before ordering.
The upright cabinet is fitted with heavy-duty caster wheels,
allowing easier indoor positioning and maintenance access.
| Over-Charge Protection | Over-Discharge Protection | Short-Circuit Protection | Temperature Protection | Over-Current Protection |
| ✓ Battery-to-Inverter Power Cable |
| ✓ Inverter Communication Cable |
| ✓ USB-to-RJ45 Adapter |
| ✓ Residential Solar Energy Storage |
| ✓ Grid-Tied Solar Battery Systems |
| ✓ Off-Grid Solar Energy Storage |
| ✓ Home Backup and Emergency Power |
| ✓ Small Commercial Energy Storage |
| ✓ Telecom and Remote Power Systems |
| ✓ UPS and Critical Load Backup |
| Parameter | Specification |
|---|---|
| Basic Information | |
| Product Type | Floor-Standing LiFePO4 Energy Storage Battery |
| Battery Chemistry | Lithium Iron Phosphate / LiFePO4 |
| Cell Configuration | 16 × CALB 3.2V 314Ah Prismatic Cells |
| Electrical Performance | |
| Rated Energy | 16kWh |
| Nominal Voltage | 51.2V |
| Working Voltage Range | 42V–58.4V |
| Nominal Capacity | 314Ah |
| Rated Charge / Discharge Current | 100A / 200A at 25 ±2°C |
| Maximum Continuous Charging Current | 200A at 25 ±2°C |
| Maximum Continuous Discharging Current | 200A at 25 ±2°C |
| BMS and Communication | |
| Smart BMS | 16S 200A BMS |
| Active Balancer | 3A Active Balancing |
| Communication | CAN and RS485 |
| Monitoring | LCD Display and Mobile BMS App |
| Built-In DC Breaker | 250A |
| Cycle Life and Environment | |
| Cycle Life | 8,000 Cycles At 25°C, 50A charge/discharge and 80% DOD |
| Charging Temperature | 0°C to 40°C |
| Discharging Temperature | -20°C to 60°C |
| Operating Humidity | 5%–95% RH |
| Maximum Operating Altitude | 3,000m |
| IP Rating | IP20 |
| Dimensions and Weight | |

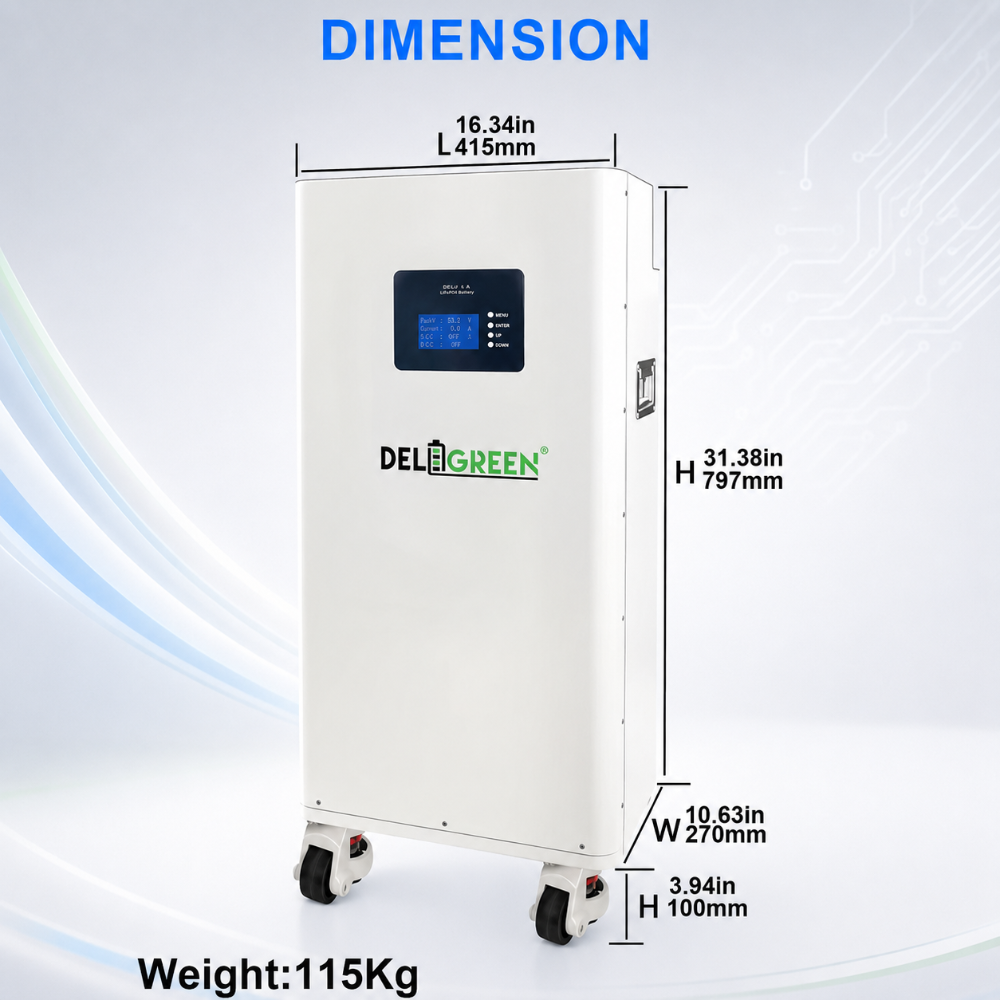

| Product Dimensions | 797 × 415 × 270mm
|
| Product Weight | 113 ±3kg |
| Storage Within One Month | -10°C to 35°C |
| Storage Within Three Months | 25 ±2°C, 65% ±20% RH |
The battery control system supports expansion of up to 16 compatible
battery packs. Correct communication addressing, protection settings,
cabling and current distribution must be configured by qualified personnel.
The battery has a nominal voltage of 51.2V, a nominal capacity
of 314Ah and approximately 16kWh of rated energy.
The specification states a maximum continuous charging current
of 200A and a maximum continuous discharging current of 200A
at 25 ±2°C.
Yes. The BMS application can display SOC, cell voltage,
current, temperature, remaining capacity, cycle information
and protection status.
The battery supports CAN and RS485 communication for compatible
inverter and energy management systems.
The battery is rated IP20 and should be installed indoors in a dry,
ventilated and temperature-controlled location unless additional
environmental protection is provided.
Yes. Installation, wiring, grounding, communication settings,
protection parameters and inverter configuration should be completed
by qualified electrical or battery system personnel.
This battery weighs approximately 113kg. Use appropriate lifting
equipment and qualified personnel during transportation and installation.
Disconnect all power before wiring. Confirm polarity, cable size,
circuit protection, grounding, inverter voltage and communication
protocol before operation.
Send us your required quantity, inverter brand and model,
application, destination country and required accessories
to confirm compatibility, delivery time and quotation.
